Home/Catalogue/EClassical 3100 (Type I) / EClassical 3100 (Type II) / EClassical 3100 (Type III) / EClassical 3100 (Type IV)
BIOBASE EClassical 3100 (Type I) / EClassical 3100 (Type II) / EClassical 3100 (Type III) / EClassical 3100 (Type IV) High Performance Liquid Chromatography System EClassical 3100
BIOBASE EClassical 3100 (Type I) / EClassical 3100 (Type II) / EClassical 3100 (Type III) / EClassical 3100 (Type IV) High Performance Liquid Chromatography System EClassical 3100 — 2BIOBASE EClassical 3100 (Type I) / EClassical 3100 (Type II) / EClassical 3100 (Type III) / EClassical 3100 (Type IV) High Performance Liquid Chromatography System EClassical 3100 — 3BIOBASE EClassical 3100 (Type I) / EClassical 3100 (Type II) / EClassical 3100 (Type III) / EClassical 3100 (Type IV) High Performance Liquid Chromatography System EClassical 3100 — 4BIOBASE EClassical 3100 (Type I) / EClassical 3100 (Type II) / EClassical 3100 (Type III) / EClassical 3100 (Type IV) High Performance Liquid Chromatography System EClassical 3100 — 5BIOBASE EClassical 3100 (Type I) / EClassical 3100 (Type II) / EClassical 3100 (Type III) / EClassical 3100 (Type IV) High Performance Liquid Chromatography System EClassical 3100 — 6BIOBASE EClassical 3100 (Type I) / EClassical 3100 (Type II) / EClassical 3100 (Type III) / EClassical 3100 (Type IV) High Performance Liquid Chromatography System EClassical 3100 — 7

Photography and technical data supplied by: BIOBASE · 7 images.

Chromatography

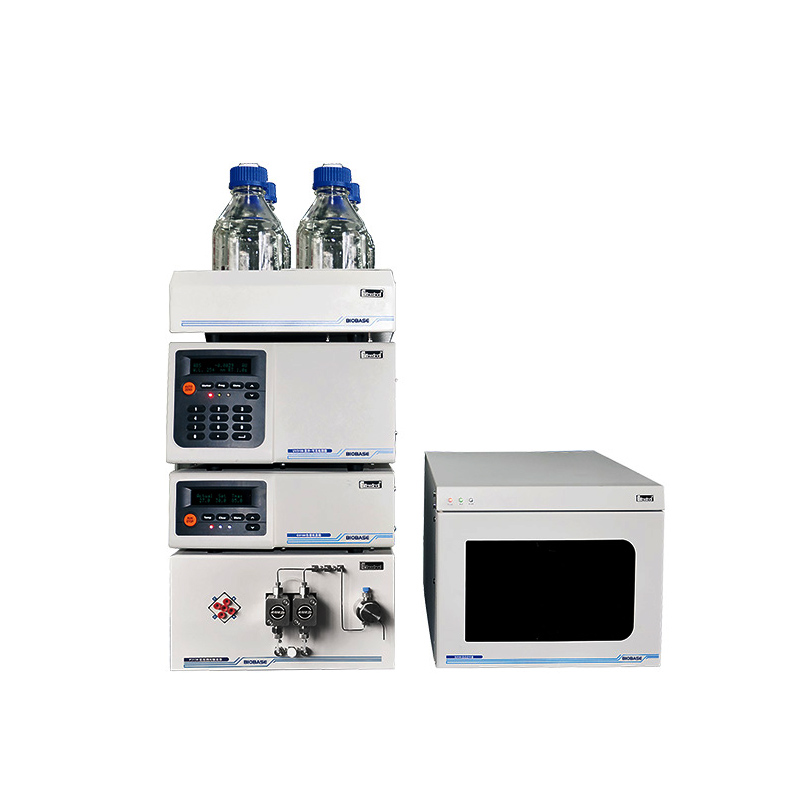

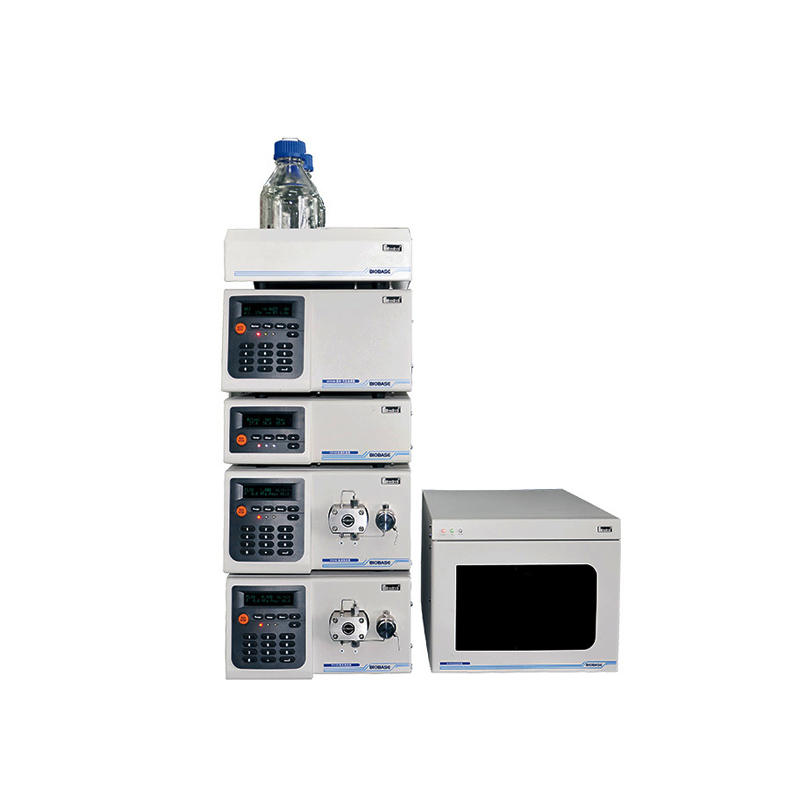

High Performance Liquid Chromatography System EClassical 3100

EClassical 3100 (Type I) / EClassical 3100 (Type II) / EClassical 3100 (Type III) / EClassical 3100 (Type IV)

Configurable analytical systems for compound separation, identification and control.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Configurable analytical separation
  • Selectable detectors and accessories
  • Matched to method and sample matrix

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterEClassical 3100 (Type I)EClassical 3100 (Type II)EClassical 3100 (Type III)EClassical 3100 (Type IV)
Item
Common to all modelsSpecification
Flow Range
Common to all models0.001～10.000mL/min（step 0.001 mL/min）
Accuracy
Common to all models≤±0.2%
Precision
Common to all models≤0.075%RSD
Pressure Range
Common to all models0-45MPa
Power
Common to all modelsAC220V±10%, 50 Hz/80W
Dimensions/Weight
Common to all models420* 300 * 175mm (W*D*H)/12kg
Flow Range (2)
Common to all models0.001～10.000mL/min（step 0.001mL/min）
Accuracy (2)
Common to all models≤±0.1%(1.000mL/min,8.5MPa,water, ambient temperature); ≤±2.0%(0.001mL/min~10.000mL/min,8.5MPa,water, ambient temperature）
Precision ·
Common to all models≤0.075%(1.000mL/min,8.5MPa,water, ambient temperature); ≤0.1%（0.100mL/min~10.000mL/min，8.5MPa,water, ambient temperature）
Maximum Working Pressure
Common to all models63MPa
Communication Methods
Common to all modelsUDP Network Communication
Mixed Volume
Common to all models750μL
Power (2)
Common to all modelsAC220V±10%, 50Hz/100W
Dimensions/Weight (2)
Common to all models400* 300 * 180mm (W*D*H)/15kg
Linearity Range
Common to all models≥1.8AU(5%) (254nm)
Wavelength Range
Common to all models190～700nm
Noise
Common to all models≤±0.5*10⁻⁵ AU
Drift
Common to all models≤1.0*10⁻⁴ AU/h
Cell Path Length ·
Common to all models10mm ·
Dimensions/Weight (3)
Common to all models420* 300 * 175mm (W*D*H)/16kg
Linearity Range (2)
Common to all models≥2.0 AU(254nm)
Wavelength Range (2)
Common to all models190～800nm
Noise (2)
Common to all models≤±1.0*10⁻⁵ AU
Drift (2)
Common to all models≤3*10⁻⁴ AU/h
Power (3)
Common to all modelsAC220V±10%, 50Hz/80W
Dimensions/Weight (4)
Common to all models500* 300 * 175mm (W*D*H)/18kg
Temperature Range
Common to all modelsAmbient+5～80℃
Accuracy (3)
Common to all models±0.3 ℃
Precision (2)
Common to all models≤0.1 ℃
Power (4)
Common to all modelsAC220V±10%, 50Hz/130W
Dimensions/Weight (5)
Common to all models420* 300 * 120mm (W*D*H)/7kg

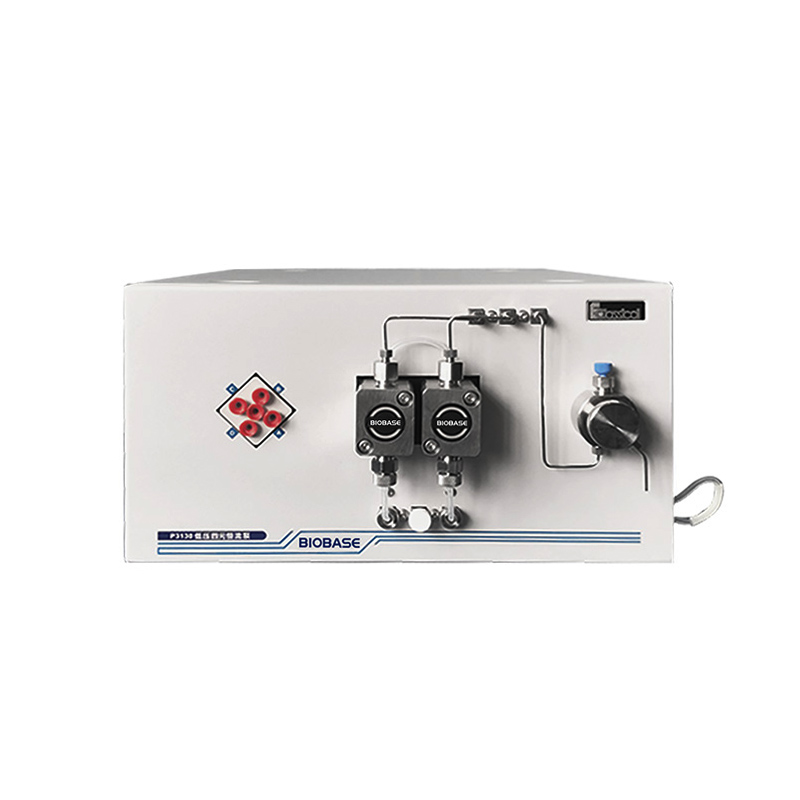

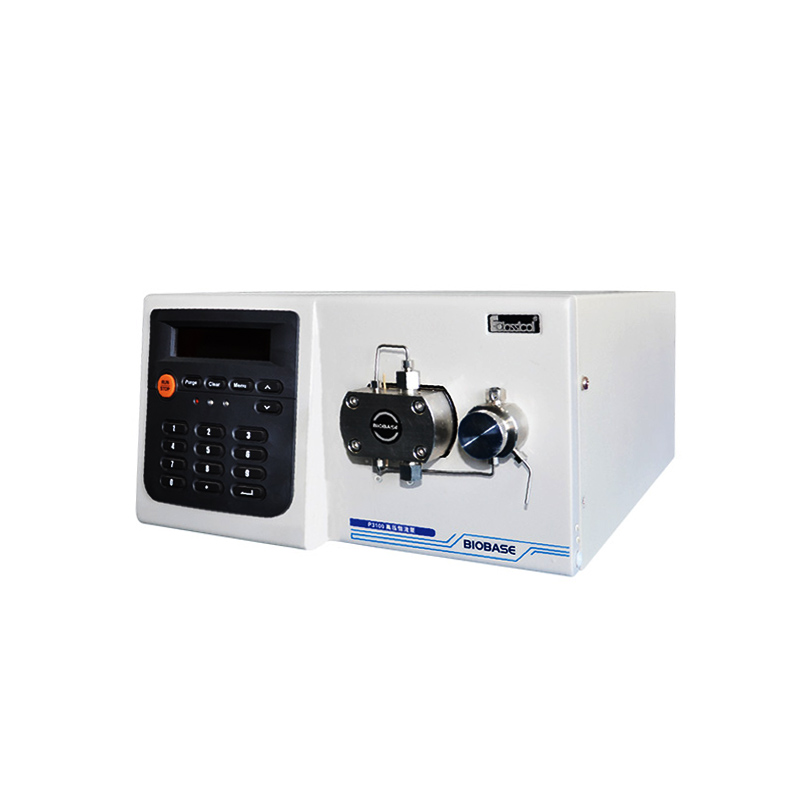

PumpP3100*1P3100*2P3130*1(With mixer)P3130*1(With mixer)

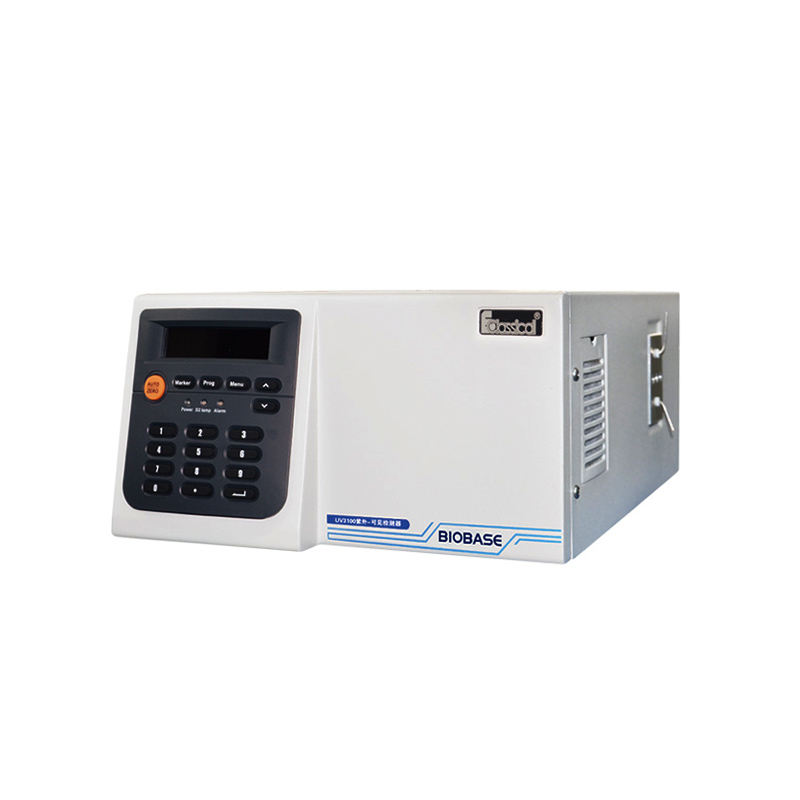

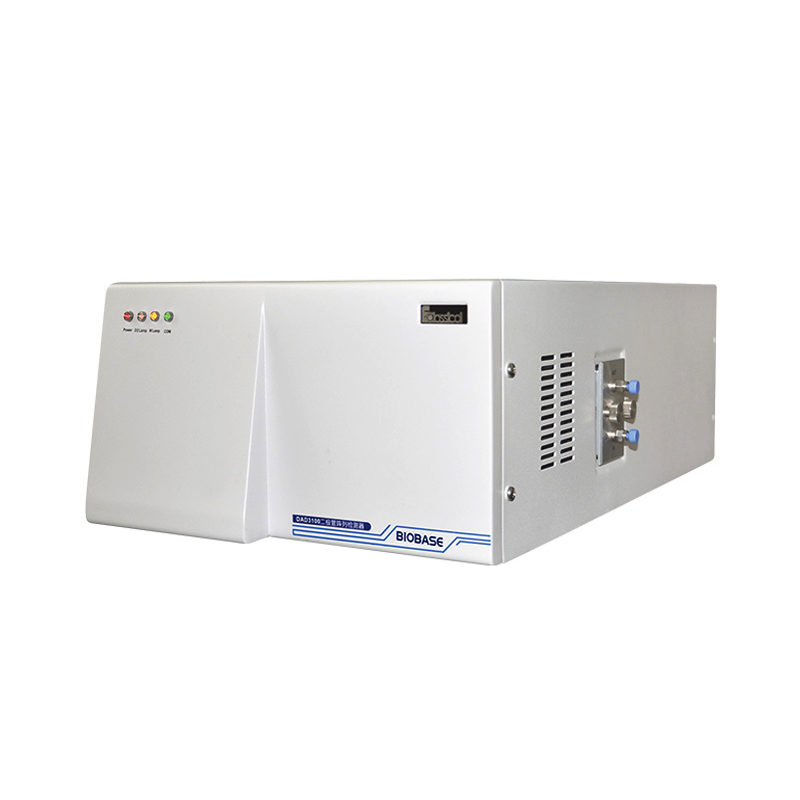

DetectorUV3100*1UV3100*1UV3100*1DAD3100(512-diode array)*1
Flow CellSC3100*1SC3100*1SC3100*1SC3000*1
Gradient Mixer/TD-1-15*1//
Solvent Bottle Tray
Common to all modelsTP3100*1
Sampler Injector
Common to all modelsRheodyne 7725i*1
Column
Common to all modelsSupersil ODS2 5μm ID4.6mm* 200mm 1
WorkstationKromstation*1Kromstation*1Kromstation*1Kromstation+PDA
AD Adapter///AD3000 adapter
Valve Mounting Frame
Common to all modelsZJ-1*1
Degasser//DG3110*1DG3110*1
System Kit
Common to all modelsEClassical 3100*1
Power Supply
Common to all modelsAC220V±10%, 50Hz
Optional Accessory

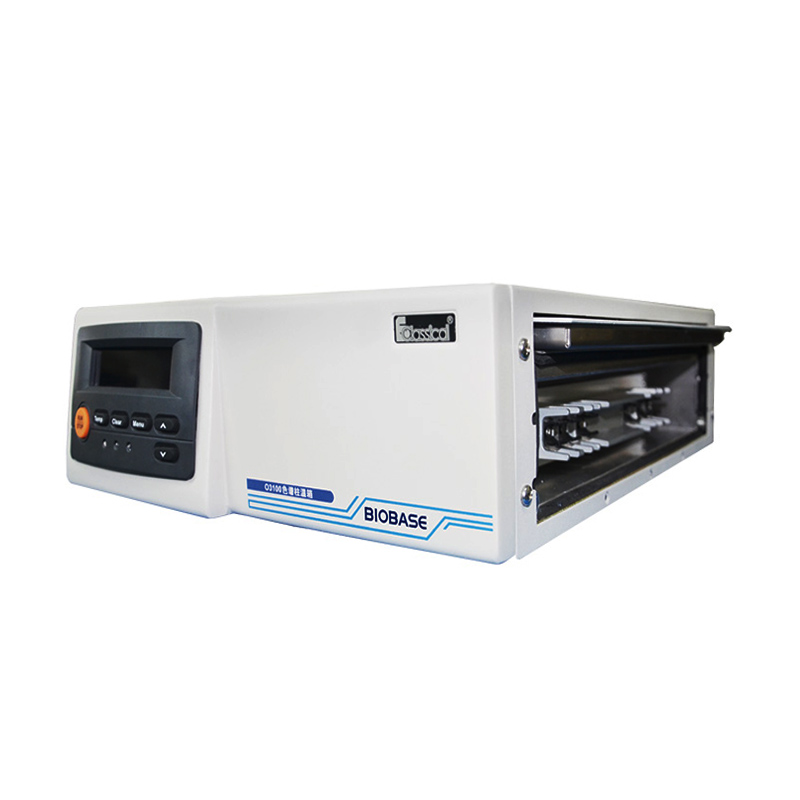

Common to all modelsS3100 autosampler, column, O3100 column oven, evaporative light scattering detector, differential refractive index detector, fluorescence detector, solvent bottle
Package Size (W* D * H)600* 440 * 380mm* 2 ; 580 * 400* 280mm * 1600* 440 * 380mm*3 ; 580 * 400* 280mm * 1600* 440 * 380mm* 2 320 * 190* 230mm * 1 500* 360 * 210mm*1600* 440 * 380mm*3 ·
Gross Weight15kg; 16kg; 9kg15kg 15kg; 19kg; 9kg19kg 18kg; 4kg; 4kg18kg; 18kg; 16.5kg

Photography and technical data supplied by BIOBASE.

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.

Request a quote
