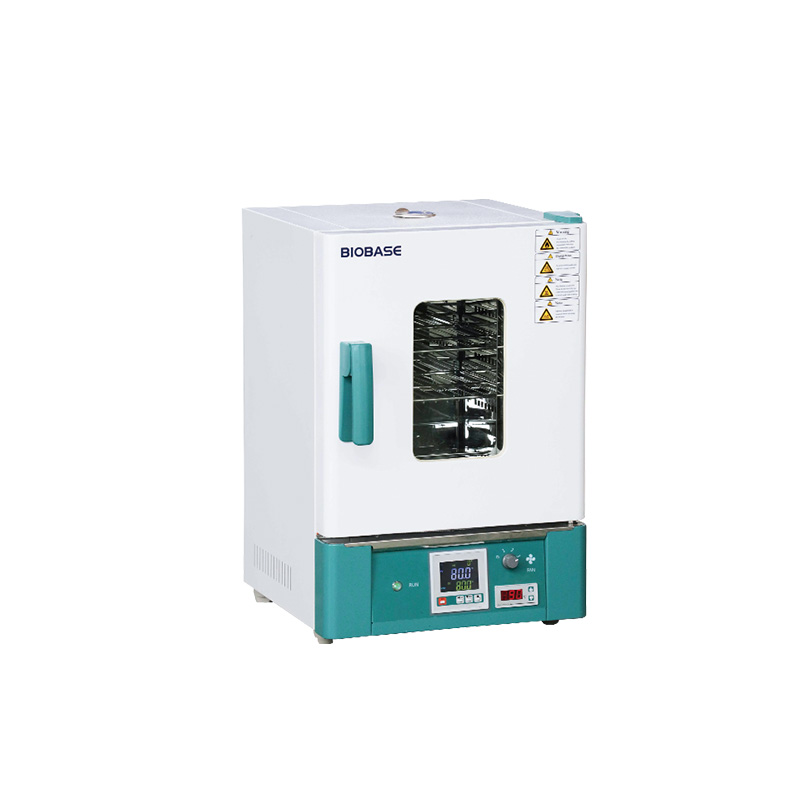

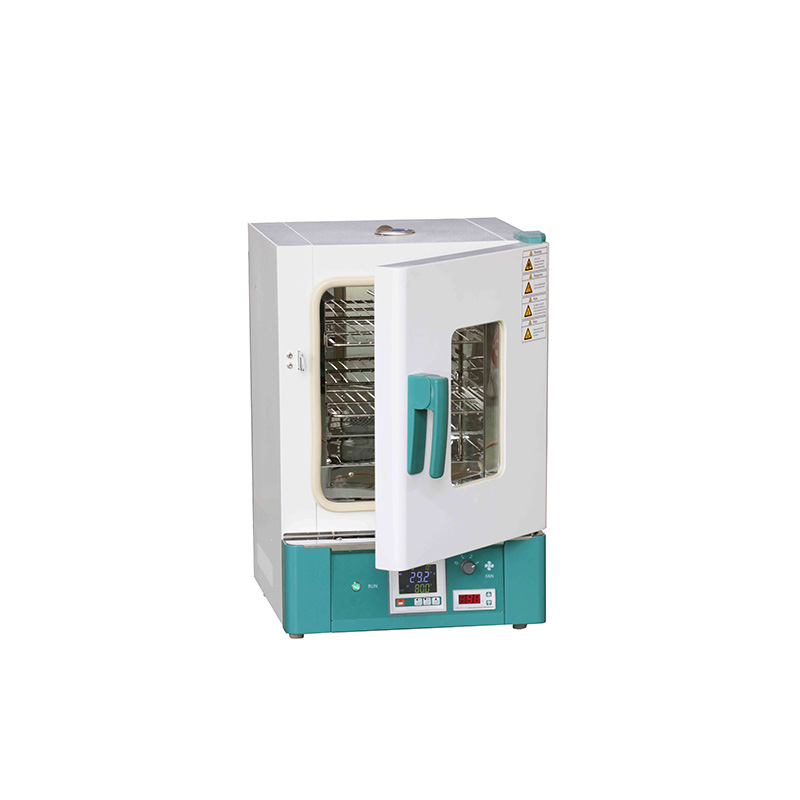

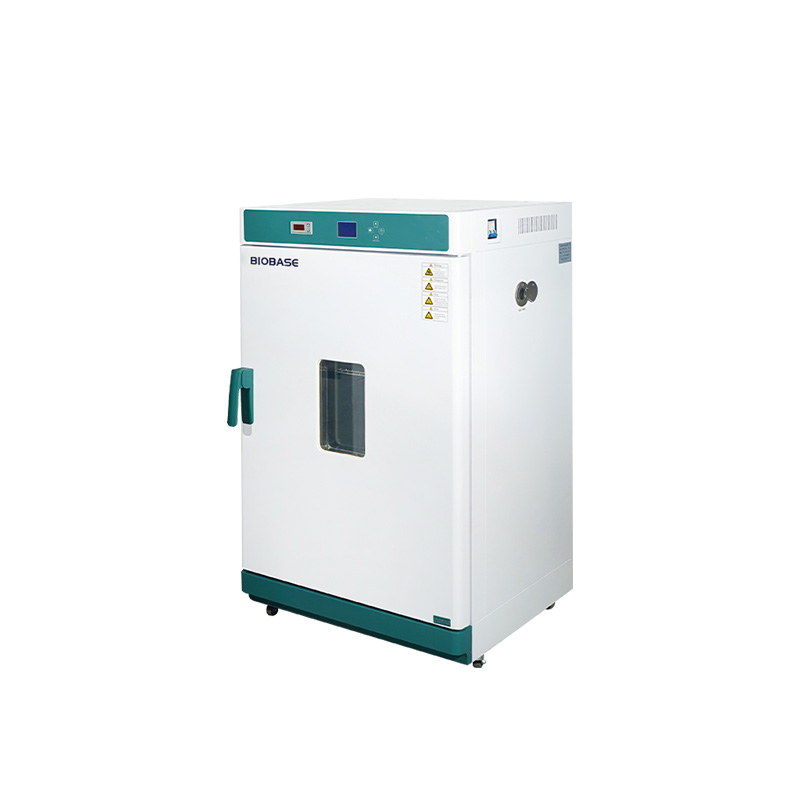

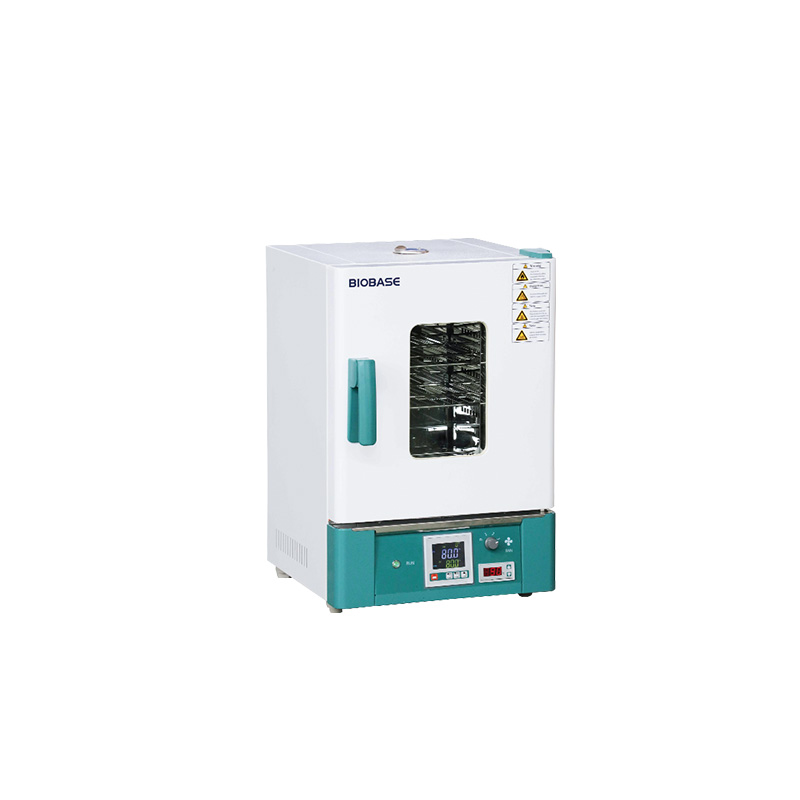

BIOBASE BJPX-H30BE / BJPX-H45BE / BJPX-H65BE / BJPX-H85BE / BJPX-H125BE / BJPX-H230BE Constant Temperature Incubator
BIOBASE BJPX-H30BE / BJPX-H45BE / BJPX-H65BE / BJPX-H85BE / BJPX-H125BE / BJPX-H230BE Constant Temperature Incubator — 2BIOBASE BJPX-H30BE / BJPX-H45BE / BJPX-H65BE / BJPX-H85BE / BJPX-H125BE / BJPX-H230BE Constant Temperature Incubator — 3BIOBASE BJPX-H30BE / BJPX-H45BE / BJPX-H65BE / BJPX-H85BE / BJPX-H125BE / BJPX-H230BE Constant Temperature Incubator — 4

Photography and technical data supplied by: BIOBASE · 4 images.

Ovens & incubation

Constant Temperature Incubator

BJPX-H30BE / BJPX-H45BE / BJPX-H65BE / BJPX-H85BE / BJPX-H125BE / BJPX-H230BE

Temperature and environmental control for culture, drying and sample preparation.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Programmable temperature
  • Uniform controlled environment
  • Selectable capacities and accessories

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBJPX-H30BEBJPX-H45BEBJPX-H65BEBJPX-H85BEBJPX-H125BEBJPX-H230BE
Cycle Mode
Common to all modelsForced convection
Temp. Range
Common to all modelsRT+5~120℃
Temp. Resolution
Common to all models0.1℃
Temp. Fluctuation
Common to all models±1℃
Temp. Uniformity
Common to all models±1.0℃
Volume30L45L65L85L125L230L
Shelf Number56881117
Load Per Rack
Common to all models15kg
Shelf Space
Common to all models40mm
Inner Chamber
Common to all modelsMirror stainless steel
Outer Shell
Common to all modelsCold rolling steel electrostatic spraying exterior
Insulation Layer
Common to all modelsHigh quality foam board
Heater
Common to all modelsStainless steel electric heating tube
Exhaust Hole
Common to all models∅35mm top(with function of test hole)
Temp. Control Mode
Common to all modelsTwo temperature section intelligent PID
Temp. Setting Mode
Common to all modelsTouch button setting
Temp. Display Mode
Common to all modelsMeasuring temperature: LCD upper screen; setting temperature: LCD lower row
Timer
Common to all models0~9999min(with timing wait function)
Operation Function
Common to all modelsFixed temperature operation, fixed timing function, auto stop.
Additional Function
Common to all modelsDigital Independent temp. limiter. 4 grades 3 speed adjustable speed fan(230 without fan speed adjust) Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
Sensor
Common to all modelsPT100
Safety Device
Common to all modelsOver temp. sound-light alarm, Digital Independent temp. limiter
Optional Accessories
Common to all modelsShelf, U-disk storage, Printer, 3.5-inch color touch screen temperature controller
Power Supply220V/1.8A220V/2.3A220V/3.2A220V/4.1A22V/5A220V/6.8A
Power0.4KW0.5KW0.7KW0.9KW1.1KW1.5KW
Internal Size(W*L*H)mm310*310*310350*350*350400*360*450450*420*450500*450*550600*500*750
External Size(W*L*H)mm460*510*695500*550*735550*550*840590*610*830636*680*915735*835*1115
Package Size(W*L*H)mm540*575*855580*615*895635*625*995680*685*1000710*730*1100857*885*1287
NW/GW(kg)33/3737/4344/4950/5660/6694/120

Photography and technical data supplied by BIOBASE.
