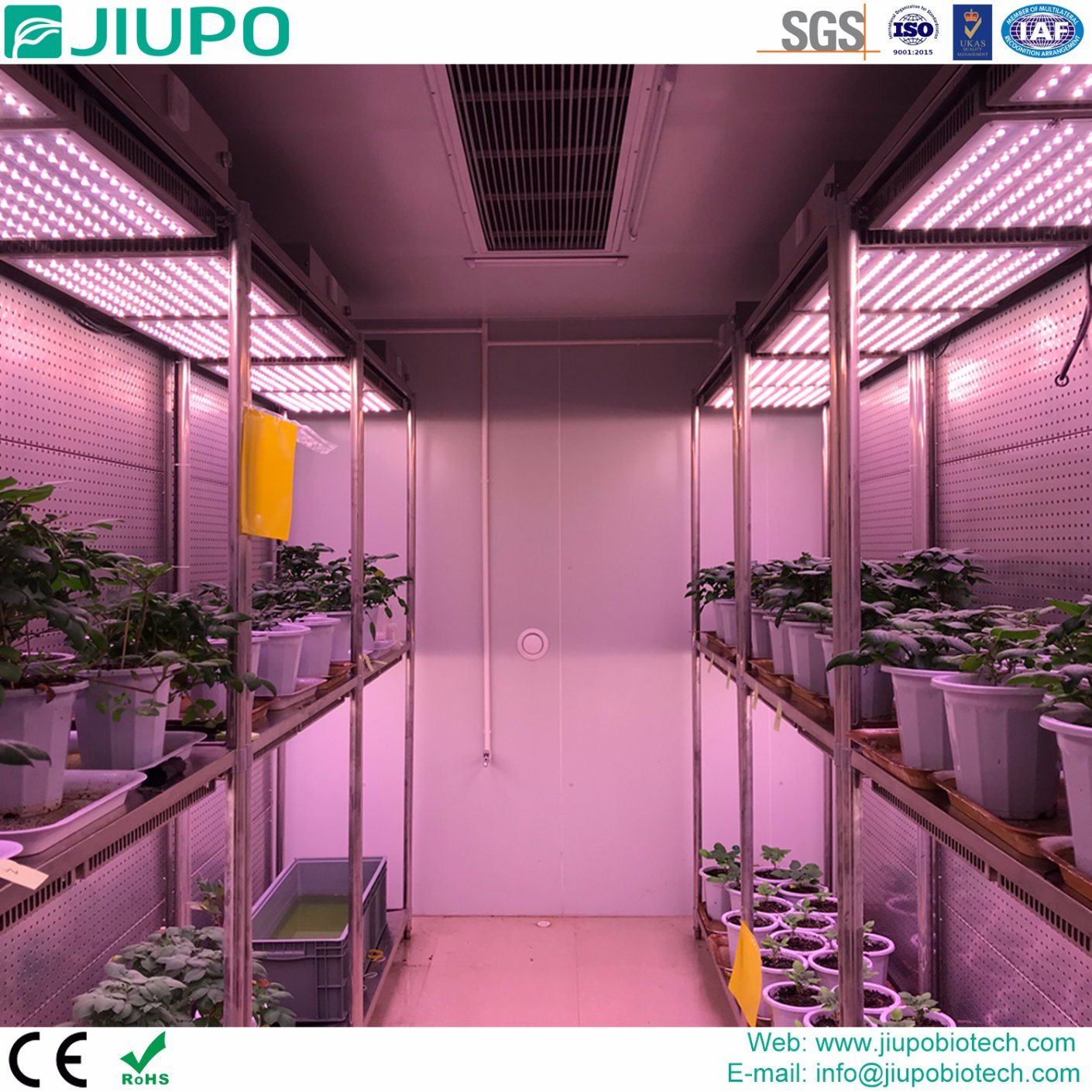

Interior of the JIUPO WIPGC-01 walk-in plant growth chamber

Photography and technical data supplied by: JIUPO · 1 image.

Agriculture & agronomy

Walk-in plant growth chamber

WIPGC-01

19.7 m³ climate room for plants of different heights, with temperature, humidity and LED-light control plus optional CO₂, camera and remote monitoring.

Made to orderPrice on request
Manufacturer
JIUPO
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • 19.7 m³ usable growth volume
  • Multi-level racks with adjustable LED lighting
  • CO₂ and remote-control configurations available

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterWIPGC-01
Primary application
Walk-in controlled-environment plant research
Growth volume
19.7 m³
Total room volume
31.2 m³
External dimensions
2400 × 4200 × 3000 mm
Temperature range
18–35 °C standard; 18–45 °C optional
Temperature precision
0.1 °C
Temperature fluctuation
±0.5 °C
Temperature uniformity
±0.5 °C
Relative humidity
60–90% RH standard; 40–90% RH optional
Humidity fluctuation
±3% RH
Racks
6 standard; 4 in alternative configuration
Rack levels
2–5 per rack
Maximum plant height
900 mm
Light intensity
Up to 1600 µmol·m⁻²·s⁻¹ at 100 mm from the source, configuration dependent
Lighting
LED panels or fluorescent tubes; custom spectra available
CO₂ control
Optional 2000 ppm sensor
Remote monitoring
Optional camera and smartphone application
Power supply
3/N/PE AC 380 V ±10%, 40 A

Technical data supplied by JIUPO.
