MesuLab ME-HZ-B stereotaxic apparatus for rats and mice
MesuLab ME-HZ-B stereotaxic apparatus for rats and mice — 2MesuLab ME-HZ-B stereotaxic apparatus for rats and mice — 3MesuLab ME-HZ-B stereotaxic apparatus for rats and mice — 4MesuLab ME-HZ-B stereotaxic apparatus for rats and mice — 5MesuLab ME-HZ-B stereotaxic apparatus for rats and mice — 6

Photography and technical data supplied by: MesuLab · 6 images.

In vivo research

Stereotaxic apparatus for rats and mice

ME-HZ-B

Single-arm stereotaxic system for precise positioning and targeted neurobiological procedures in rats and mice.

Made to orderPrice on request
Manufacturer
MesuLab
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • 80 mm three-dimensional travel on each axis
  • Single arm with 360° rotation and −90° to +90° tilt
  • Rat adaptor and ear bars included

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterME-HZ-B
Model
ME-HZ-B
Construction
Alloy material, single operating arm
Positioning accuracy
±0.1 mm
Thruster accuracy
±0.1 mm
Three-axis travel
80 mm on the X, Y and Z axes

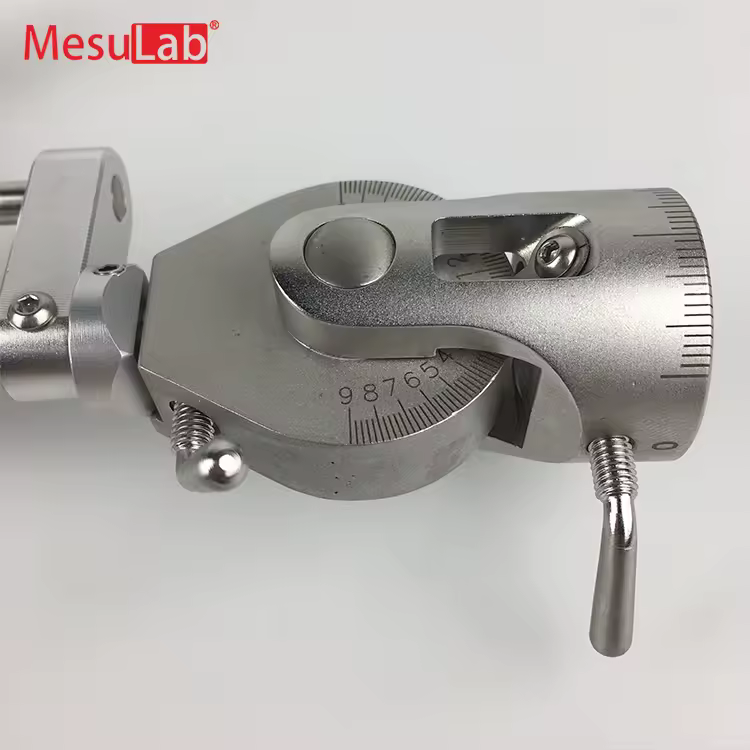

Arm rotation
360°
Arm tilt
180° total (−90° to +90°)
Scale
Laser engraved
Standard accessories

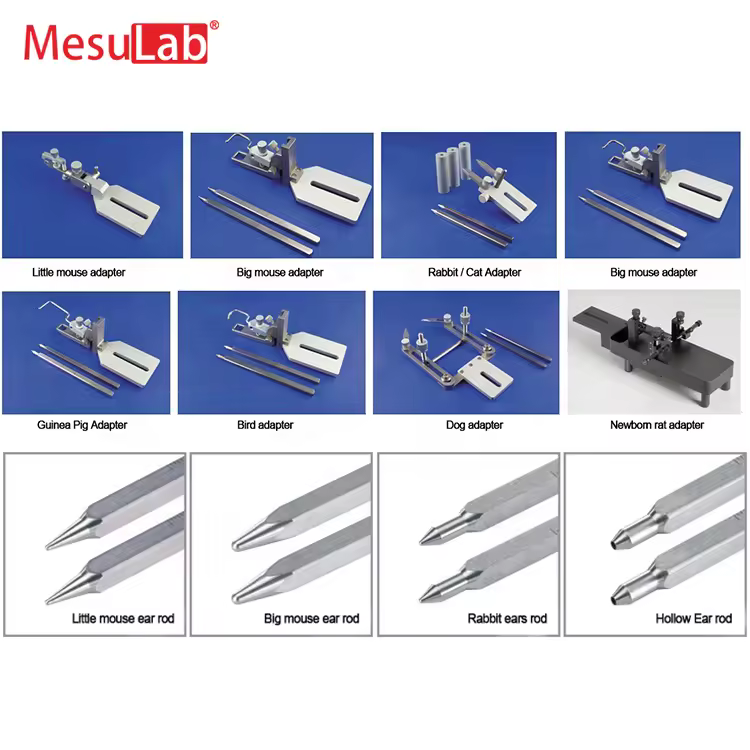

Rat adaptor with ear bars and one rat brain atlas
Optional accessory
Bone-drill holder
Dimensions
350 × 250 × 340 mm
Net weight
5.5 kg
Package dimensions
500 × 400 × 200 mm
Gross weight
8 kg
Warranty
1 year

Technical data supplied by MesuLab.
