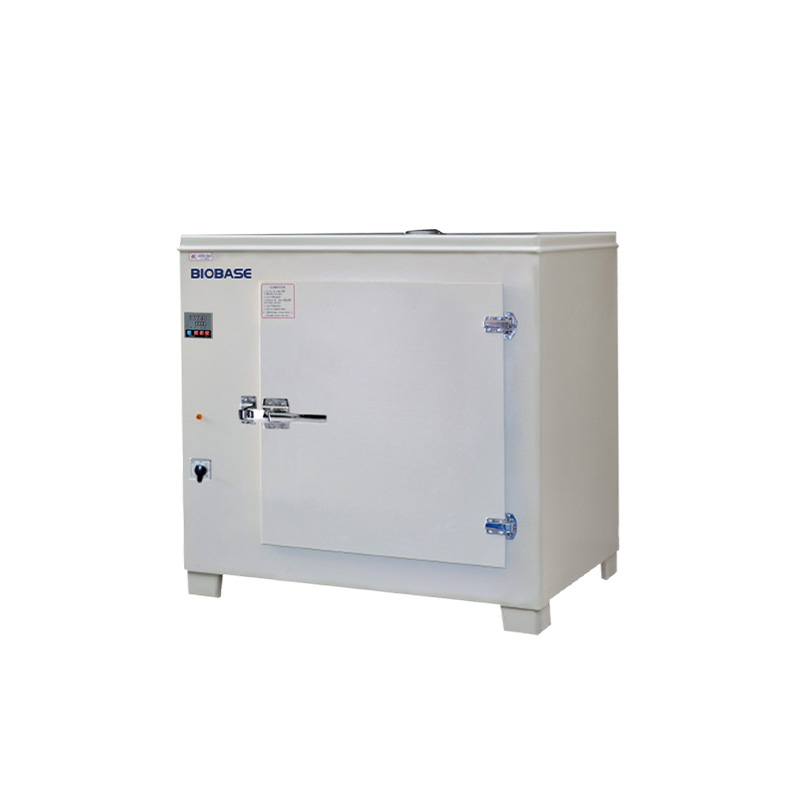

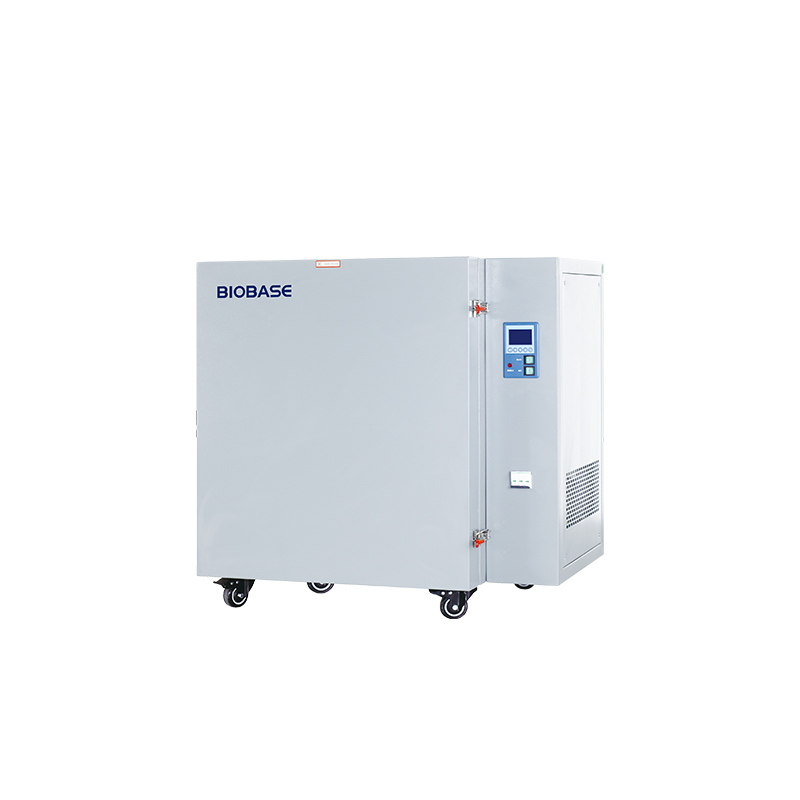

BIOBASE BOV-H50 / BOV-H100 / BOV-H226 High Temperature Drying Oven
BIOBASE BOV-H50 / BOV-H100 / BOV-H226 High Temperature Drying Oven — 2

Photography and technical data supplied by: BIOBASE · 2 images.

Ovens & incubation

High Temperature Drying Oven

BOV-H50 / BOV-H100 / BOV-H226

Temperature and environmental control for culture, drying and sample preparation.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Programmable temperature
  • Uniform controlled environment
  • Selectable capacities and accessories

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBOV-H50BOV-H100BOV-H226
Capacity50L100L226L
Temp. RangeRT+20~400℃RT+20~400℃50~500℃
Temp. Precision
Common to all models0.1℃
Temp. Fluctuation±0.5℃±0.5℃±1℃
Temp. Fluctuation (2)±3.0%±3.0%±3.5%
Timing Range0~5999min0~5999min0~9999min
DisplayLCDLCDLED
Alarm
Common to all modelsOver-temperature alarm, temperature probe damage alarm
Material
Common to all modelsExternal cold-rolled steel with painting, internal stainless steel
Ambient Temp.
Common to all models5~40℃
Power Supply
Common to all modelsAC380V, 50/60Hz
Consumption3250W4050W8000W
Shelves2pcs2pcs3pcs
Optional AccessoriesPrinter/RS485/USBPrinter/RS485/USB/
Internal Size(W*D*H)350*350*400mm450*450*450mm602*500*753mm
External Size(W*D*H)890*700*920mm990*790*990mm1070*770*1122mm
Package Size(W*D*H)1010*820*1150mm1100*920*1210mm1200*890*1280mm
Net Weight153kg180kg174kg
Gross Weight199kg245kg204kg

Photography and technical data supplied by BIOBASE.
