Sample preparation

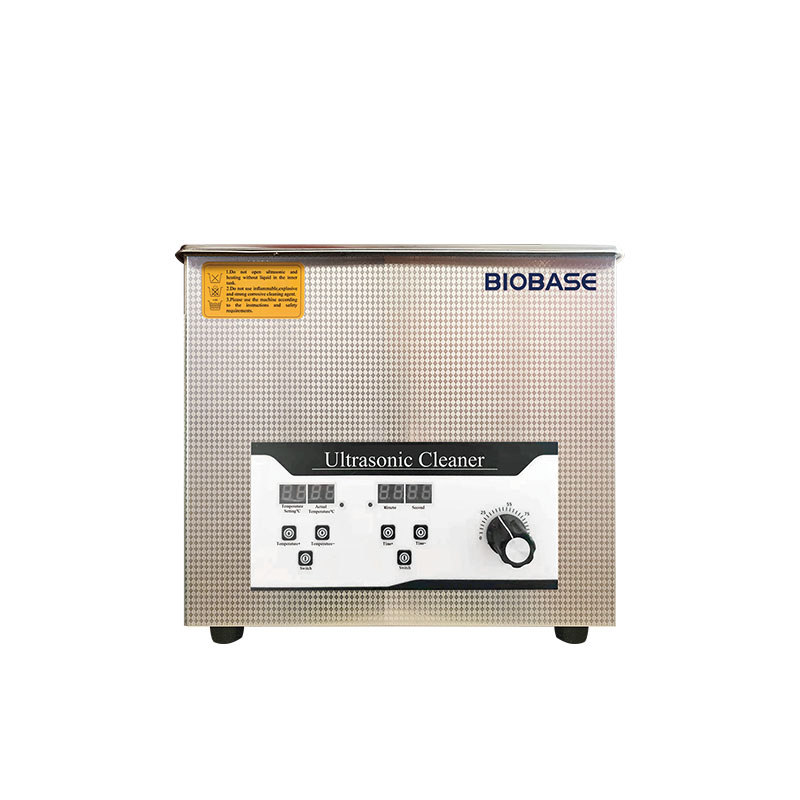

Ultrasonic Cleaner UC-AD Series
UC-18AD / UC-24AD / UC-36AD / UC-48AD / UC-60AD
Sample preparation, homogenisation, concentration and processing before analysis.
- Manufacturer
- BIOBASE
01 / Key features
Key features
- Reproducible sample preparation
- Configurations for different volumes
- Integration with downstream analytical steps
02 / LaboratoriX technical datasheet
LaboratoriX technical datasheet
Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.
| Parameter | UC-18AD | UC-24AD | UC-36AD | UC-48AD | UC-60AD |
|---|---|---|---|---|---|
| Capacity(L) | 6.5 | 10 | 15 | 22.5 | 30 |
| Ultrasonic Frequency | |||||
| Time Range /Heating Temperature | |||||
| Ultrasonic Power | 180W | 240W | 360W | 480W | 600W |
| Heating Power | |||||
| Power Supply | |||||
| Tank Size(mm) | 300*150*150 | 300*240*150 | 330*300*150 | 500*300*150 | 500*300*200 |
| External Size(mm) | 330*180*310 | 330*270*310 | 360*330*310 | 530*330*310 | 530*330*350 |
| Packing Size(mm) | 440*280*355 | 440*360*355 | 475*415*380 | 640*415*380 | 640*415*425 |
| Gross Weight(kg) | 7 | 9 | 11 | 14 | 17 |
