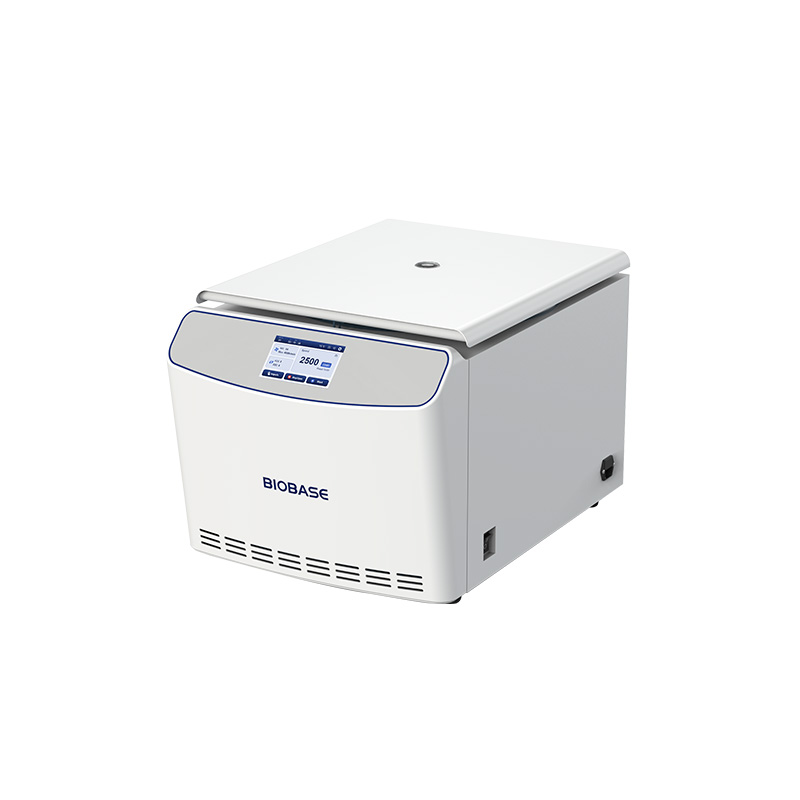

BIOBASE BKC-TL5P Table Top Low Speed Centrifuge BKC-TL5P

Photography and technical data supplied by: BIOBASE · 1 image.

Centrifuges

Table Top Low Speed Centrifuge BKC-TL5P

BKC-TL5P

Sample separation with configurations suited to different volumes and speeds.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Controlled speed and centrifugal force
  • Rotors matched to the vessel
  • Benchtop and refrigerated formats

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBKC-TL5P
Max. Speed
5000rpm
Max. RCF
3962×g
Max. Capacity
4*300ml
Speed Precision
±10rpm
Time Range
1s~99h59min/Continuous/Short-span
Power Supply
AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
Noise
≤60dB(A)
External Size(L*W*H)
430*615*400mm
Package Size(L*W*H)
530*665*570mm
Net Weight
45kg
Gross Weight
54kg(220V); 59kg(110V)
Type Swing Rotor
NO.: 5M00024 · Capacity: 48*2/3/4/5/7ml · Max. Speed(rpm): 4000 · Max. RCF(×g): 2952 · Adapters: /
Type Swing Rotor (2)
NO.: 5M00025 · Capacity: 48*5/7ml · Max. Speed(rpm): 4000 · Max. RCF(×g): 2952 · Adapters: 2/3/4ml blood collection tube
Type Swing Rotor (3)
NO.: 5M00026 · Capacity: 72*2/3/4/5/7ml · Max. Speed(rpm): 4000 · Max. RCF(×g): 2808 · Adapters: /
Type Swing Rotor (4)
NO.: 5M00029 · Capacity: 16*10/15ml · Max. Speed(rpm): 4000 · Max. RCF(×g): 2957 · Adapters: 2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲) ·
Type Swing Rotor (5)
NO.: 5M00030 · Capacity: 24*10/15ml · Max. Speed(rpm): 4000 · Max. RCF(×g): 2957 · Adapters: 2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲) ·
Type Swing Rotor (6)
NO.: 5M00031 · Capacity: 32*10/15ml · Max. Speed(rpm): 4000 · Max. RCF(×g): 2952 · Adapters: 2/3/4ml blood collection tube, 5/7ml blood collection tube, 15ml(▲) ·
Type Swing Rotor (7)
NO.: 5M00032 · Capacity: 4*50ml · Max. Speed(rpm): 4500 · Max. RCF(×g): 3962 · Adapters: 50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml
Type Swing Rotor (8)
NO.: 5M00033 · Capacity: 8*50ml · Max. Speed(rpm): 4000 · Max. RCF(×g): 2952 · Adapters: 50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml
Type Swing Rotor (9)
NO.: 5M00034 · Capacity: 4*100ml · Max. Speed(rpm): 4500 · Max. RCF(×g): 3962 · Adapters: 16*2/3/4ml blood collection tube, 16*5/7ml · blood collection tube
Type Swing Rotor (10)
NO.: 5M00036 · Capacity: 8*100ml · Max. Speed(rpm): 4000 · Max. RCF(×g): 3077 · Adapters: 32*2/3/4ml blood collection tube, 32* 5/7ml blood collection tube
Type Swing Rotor (11)
NO.: 5M00038 · Capacity: 4*250ml(flat bottom) · Max. Speed(rpm): 4000 · Max. RCF(×g): 2780 · Adapters: 48*1.5/2ml, 40*2/3/4/5/7ml · blood collection tube, · 48*2/3/4/5/7ml blood collection tube, 24*10ml(▲), · 28*10ml, 20*15ml, 4*50ml(▲), · 8*50ml(●), · 4*100ml
Type Swing Rotor (12)
NO.: 5M00053 · Capacity: 4*250ml(biosafety) · Max. Speed(rpm): 4000 · Max. RCF(×g): 3041 · Adapters: 48*1.5/2ml, 40*2/3/4/5/7ml · blood collection tube, · 48*2/3/4/5/7ml blood collection tube, 24*10ml(▲), · 28*10ml, 20*15ml, 4*50ml(▲), · 8*50ml(●), · 4*100ml
Type Swing Rotor (13)
NO.: 5M00058 · Capacity: 4*300ml · Max. Speed(rpm): 4000 · Max. RCF(×g): 3220 · Adapters: /
Type Microplate Rotor
NO.: 5M00045 · Capacity: 2*2*96 well · Max. Speed(rpm): 4000 · Max. RCF(×g): 2361 · Adapters: /
Type Angle Rotor
NO.: 5M00072 · Capacity: 12*20ml · Max. Speed(rpm): 5000 · Max. RCF(×g): 3516 · Adapters: 15ml, 10ml, 5ml, 1.5/2ml
Type Angle Rotor (2)
NO.: 5M00073 · Capacity: 12*15ml · Max. Speed(rpm): 5000 · Max. RCF(×g): 3354 · Adapters: 1.5/2ml, 2/3/4ml blood collection tube
Type Angle Rotor (3)
NO.: 5M00074 · Capacity: 8*15/20ml · Max. Speed(rpm): 5000 · Max. RCF(×g): 2655 · Adapters: 1.5/2ml, 2/3/4ml blood collection tube
Type Angle Rotor (4)
NO.: 5M00069 · Capacity: 24*10/15ml · Max. Speed(rpm): 5000 · Max. RCF(×g): 3494 · Adapters: 2/3/4ml blood collection tube, 5/7ml blood collection tube, 5ml, 7ml, 15ml(▲)
Type Angle Rotor (5)
NO.: 5M00075 · Capacity: 24*10ml · Max. Speed(rpm): 5000 · Max. RCF(×g): 3354 · Adapters: 1.5/2ml, 2/3/4ml blood collection tube
Type Angle Rotor (6)
NO.: 5M00076 · Capacity: 18*10ml · Max. Speed(rpm): 5000 · Max. RCF(×g): 3354 · Adapters: 1.5/2ml, 2/3/4ml blood collection tube
Type Angle Rotor (7)
NO.: 5M00077 · Capacity: 12*10ml · Max. Speed(rpm): 5000 · Max. RCF(×g): 3354 · Adapters: 1.5/2ml, 2/3/4ml blood collection tube
Type Angle Rotor (8)
NO.: 5M00084 · Capacity: 6*50ml · Max. Speed(rpm): 5000 · Max. RCF(×g): 2711 · Adapters: 50ml(▲), 20ml, 15ml, 10ml, 5ml, 1.5/2ml

Photography and technical data supplied by BIOBASE.
