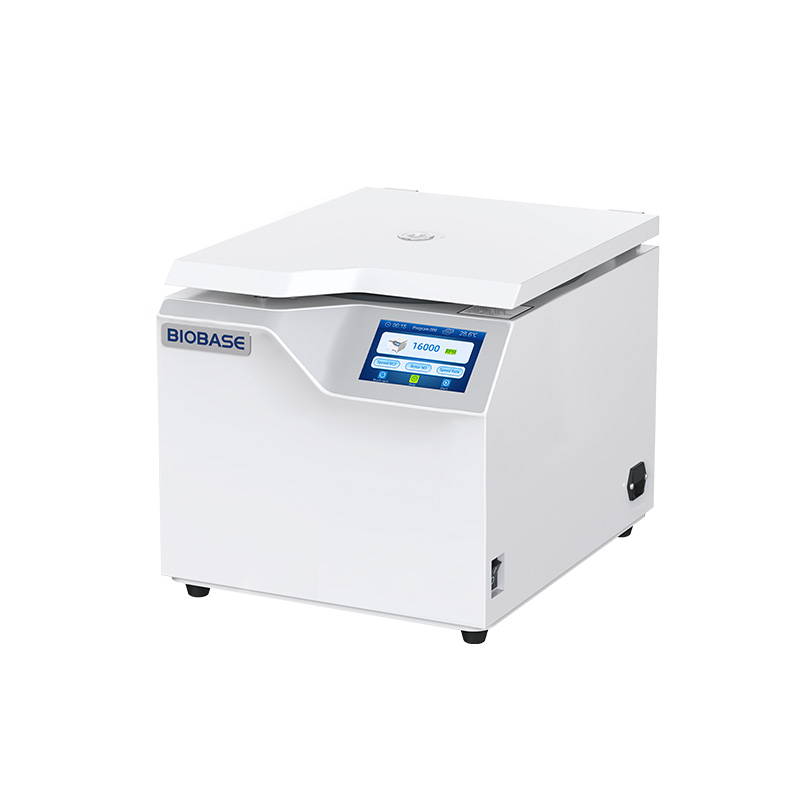

Table Top High Speed Centrifuge BKC-TH16C

Name: Table Top High Speed Centrifuge BKC-TH16C
Brand: BIOBASE
SKU: BKC-TH16C

BKC-TH16C

Sample separation with configurations suited to different volumes and speeds.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Controlled speed and centrifugal force
Rotors matched to the vessel
Benchtop and refrigerated formats

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKC-TH16C
Max. Speed	16000r/min
Speed Accuracy	±20rpm
Max. RCF	21695×g
Max. Volume	*4100ml**
Power Supply	Standard: AC220V, 50/60Hz Optional: AC110V, 50/60Hz
Timing Range	1s~99h59min, Continuous/Short-span
Noise	≤65dB
External Size(LWH)	*340500340mm*
Package Size(LWH)	*566576432 mm*
Net Weight	29kg
Gross Weight	37kg(220V), 42kg(110V)
NO. 16M0003	*Rotor Type: Angle Rotor · Volume: 87ml · Max. Speed(r/min): 14000 · Max. RCF(×g): 16435 · Adapters: /**

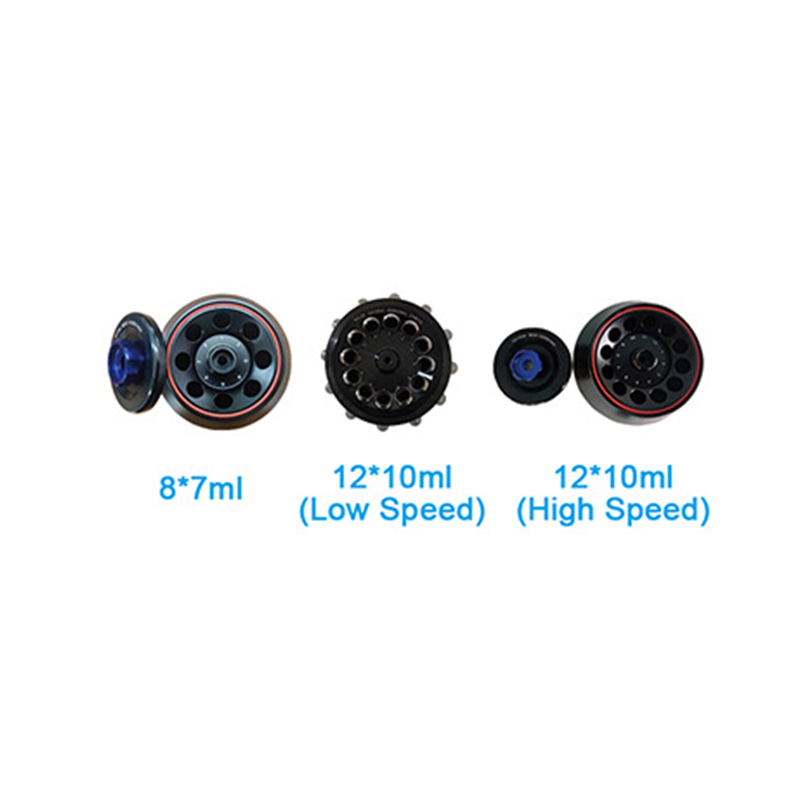

NO. 16M0004	*Rotor Type: Angle Rotor · Volume: 1210/15ml(low speed) · Max. Speed(r/min): 6000 · Max. RCF(×g): 3743 · Adapters: 2/3/4/5/7ml blood collection tube, 5ml/7ml blood collection tube, 15ml(▲)**
NO. 16M0005	*Rotor Type: Angle Rotor · Volume: 1210ml(high speed) · Max. Speed(r/min): 12000 · Max. RCF(×g): 14328 · Adapters: 1.5/2ml, 5ml**
NO. 16M0006	*Rotor Type: Angle Rotor · Volume: 121.5/2ml · Max. Speed(r/min): 16000 · Max. RCF(×g): 18031 · Adapters: 0.2ml, 0.5ml**

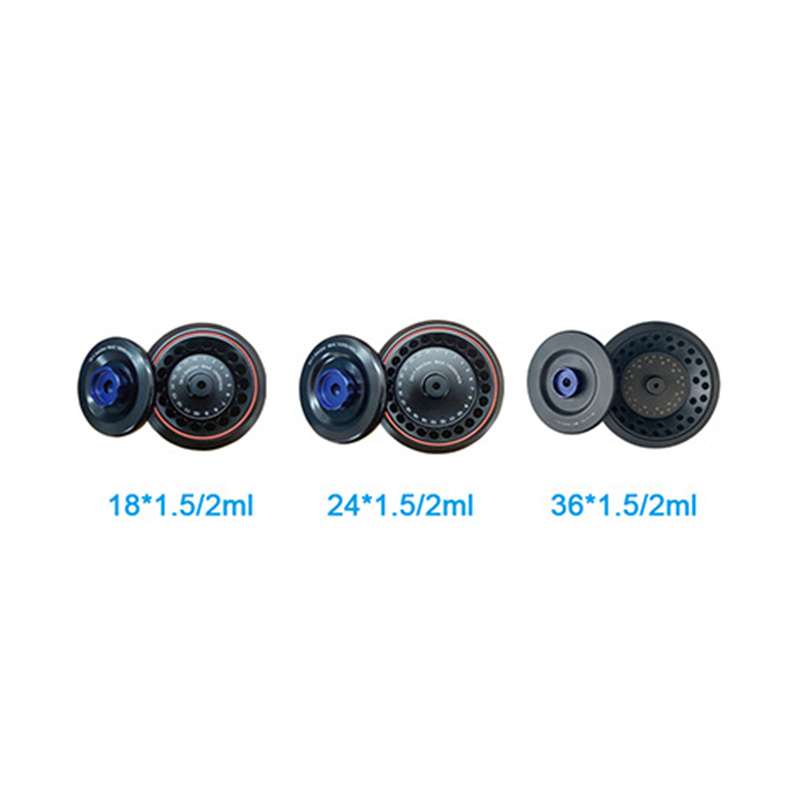

NO. 16M0007	*Rotor Type: Angle Rotor · Volume: 181.5/2ml · Max. Speed(r/min): 15000 · Max. RCF(×g): 18866 · Adapters: 0.2ml, 0.5ml**
NO. 16M0008	*Rotor Type: Angle Rotor · Volume: 241.5/2ml · Max. Speed(r/min): 14000 · Max. RCF(×g): 19722 · Adapters: 0.2ml, 0.5ml**
NO. 16M0090	*Rotor Type: Angle Rotor · Volume: 361.5/2ml · Max. Speed(r/min): 13000 · Max. RCF(×g): 19159 · Adapters: 0.2ml, 0.5ml**

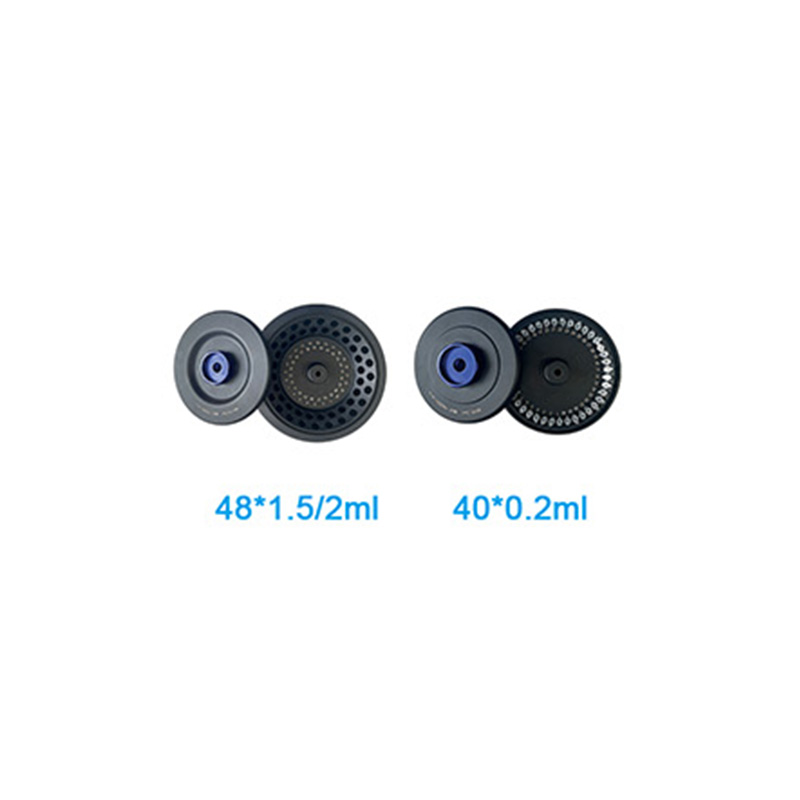

NO. 16M0091	*Rotor Type: Angle Rotor · Volume: 481.5/2ml · Max. Speed(r/min): 13000 · Max. RCF(×g): 19159 · Adapters: 0.2ml, 0.5ml**
NO. 16M0085	*Rotor Type: Angle Rotor · Volume: 400.2ml · Max. Speed(r/min): 16000 · Max. RCF(×g): 21695 · Adapters: /**

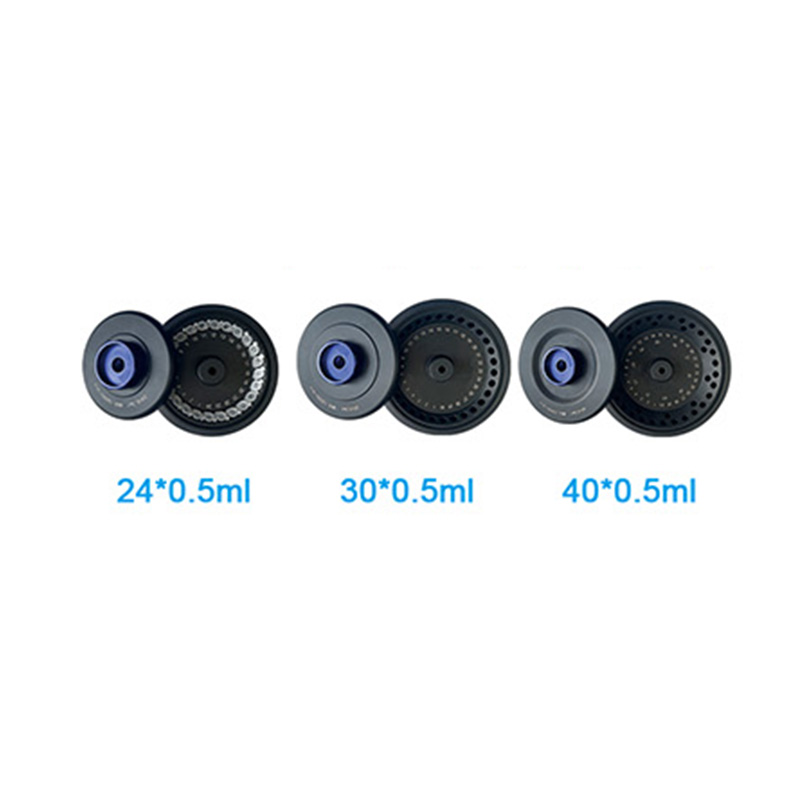

NO. 16M0086	*Rotor Type: Angle Rotor · Volume: 240.5ml · Max. Speed(r/min): 16000 · Max. RCF(×g): 20035 · Adapters: /**
NO. 16M0087	*Rotor Type: Angle Rotor · Volume: 300.5ml · Max. Speed(r/min): 13000 · Max. RCF(×g): 15210 · Adapters: /**
NO. 16M0088	*Rotor Type: Angle Rotor · Volume: 400.5ml · Max. Speed(r/min): 13000 · Max. RCF(×g): 15267 · Adapters: /**
NO. 16M0089	*Rotor Type: Angle Rotor · Volume: 480.2ml pcr · Max. Speed(r/min): 13000 · Max. RCF(×g): 11941 · Adapters: /*
NO. 16M0009	*Rotor Type: Angle Rotor · Volume: 105ml · Max. Speed(r/min): 14000 · Max. RCF(×g): 15339 · Adapters: 1.5/2ml**

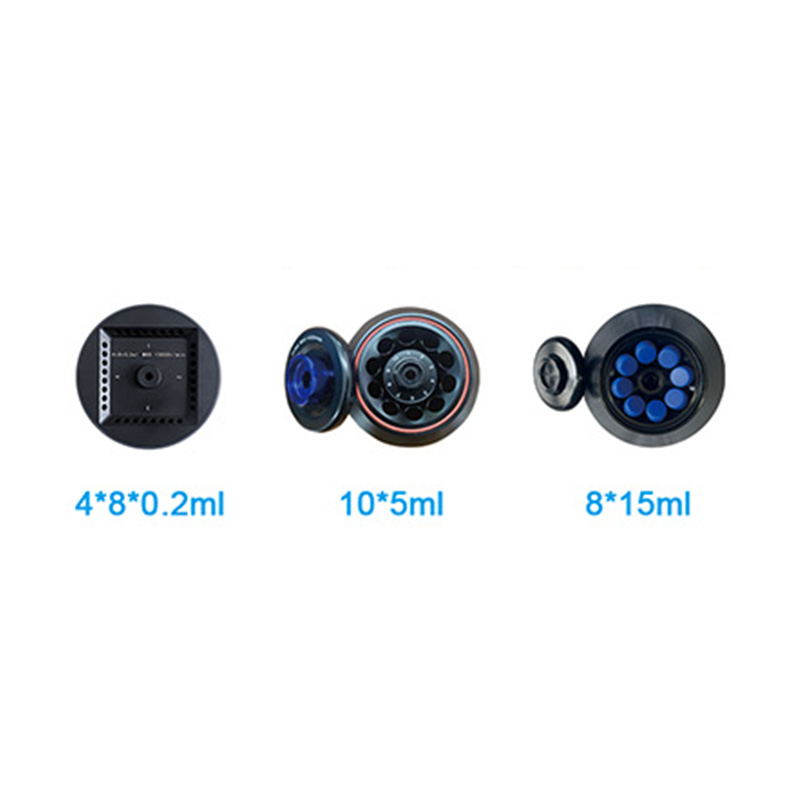

NO. 16M00010	*Rotor Type: Angle Rotor · Volume: 815ml(▲) · Max. Speed(r/min): 12000 · Max. RCF(×g): 15294 · Adapters: 5ml(▲)**
NO. 16M00011	*Rotor Type: Angle Rotor · Volume: 815ml(●) · Max. Speed(r/min): 12000 · Max. RCF(×g): 15294 · Adapters: /**
NO. 16M0017	*Rotor Type: Angle Rotor · Volume: 1015ml · Max. Speed(r/min): 11000 · Max. RCF(×g): 13798 · Adapters: /**

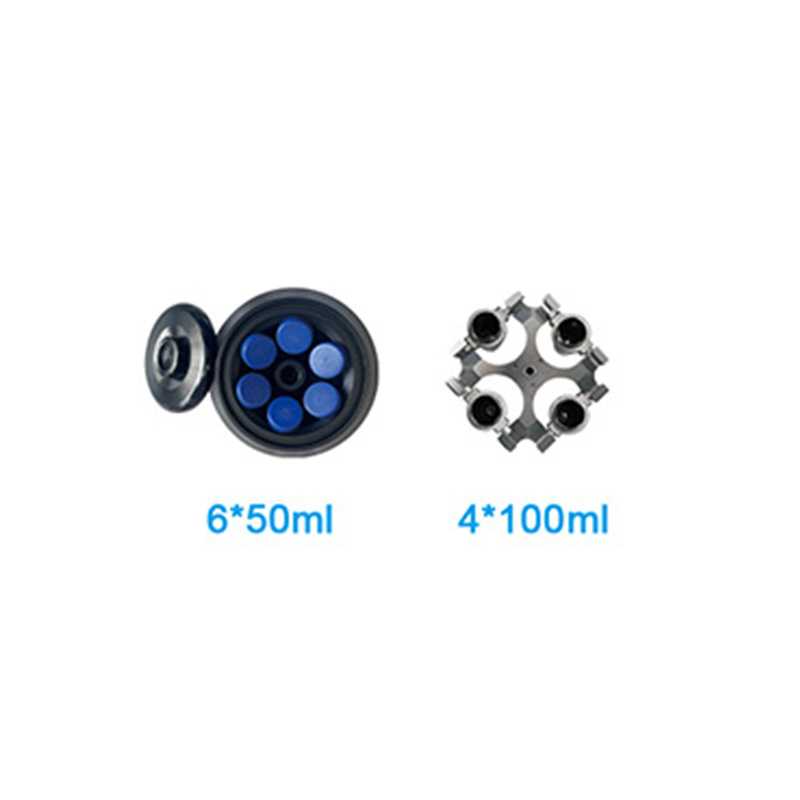

NO. 16M00012	*Rotor Type: Angle Rotor · Volume: 650ml(▲) · Max. Speed(r/min): 11000 · Max. RCF(×g): 13798 · Adapters: 15ml(▲), 50ml(●)**
NO. 16M00013	*Rotor Type: Angle Rotor · Volume: 650ml(round/flat) · Max. Speed(r/min): 11000 · Max. RCF(×g): · · Adapters: /**
NO. 16M0062-1	*Rotor Type: Swing Rotor · Volume: 810ml · Max. Speed(r/min): 4000 · Max. RCF(×g): 2522 · Adapters: 2/3/4ml blood collection tube, 5/7ml blood collection tube, 10ml(▲)**
NO. 16M0020	Rotor Type: Swing Rotor · Volume: 24 Capillaries · Max. Speed(r/min): 12000 · Max. RCF(×g): 14170 · Adapters: /
NO. 16M0066	*Rotor Type: Swing Rotor · Volume: 4100ml · Max. Speed(r/min): 4000 · Max. RCF(×g): 2379 · Adapters: 2/3/4ml blood collection tube, 5/7ml blood collection tube**
