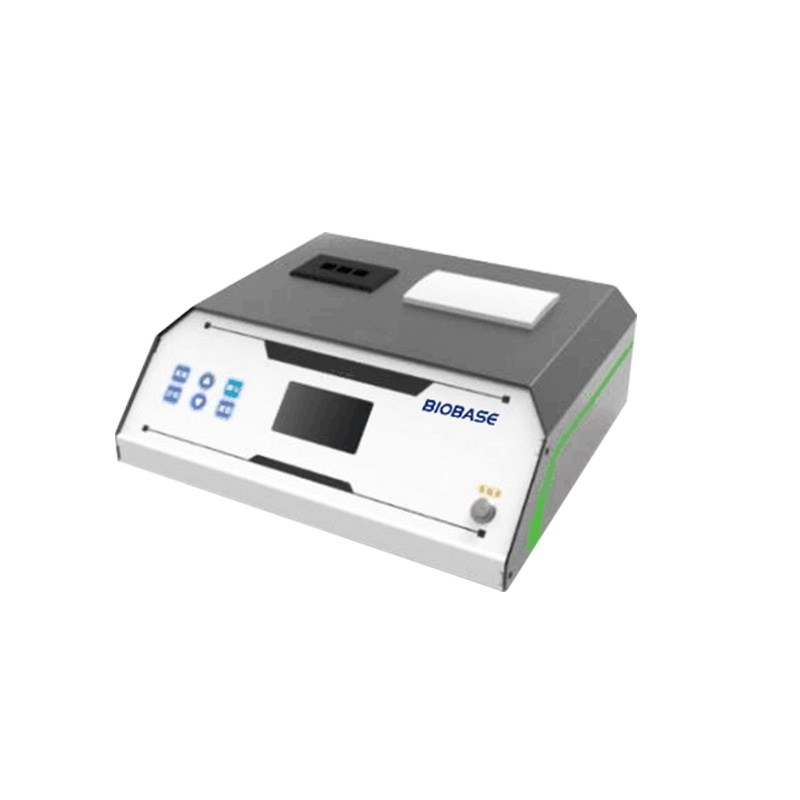

Soil Nutrient Tester

Name: Soil Nutrient Tester BK-Y6AG
Brand: BIOBASE
SKU: BK-Y6AG

BK-Y6AG

Instrumental measurement of physicochemical parameters for laboratory workflows.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Digital measurement
Method matched to the parameter
Repeatable results and data capture

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-Y6AG
Fu nction	Simultaneous extraction and determination of three nutrients of quick effect n, P and K in soil at one time, and scientific recommendation of fertilization amount
Range and Resolution	0.001-9999
Repeatability Error	≤ 0.05% (0.001, potassium dichromate solution)
Stability	Drift less than 0.1% (0.001, transmittance measurement) within 30 minutes.
Linear Error	≤ 0.2% (0.002, copper sulfate detection)
Sensitivity	Red light ≥ 4.5 × 10 -5 , Blue light ≥ 3.17 × 10 -3 , Green light ≥2.35 × 10 -3 , Orange light ≥ 2.13 × 10 -3
Wavelength Range	Red: 680 ± 2nm; blue: 420 ± 2nm; green: 510 ± 2nm; Orange: 590 ± 4nm
PH Value (PH)	Test range: 1~14; Accuracy: 0.01 (3) error: ± 0.1 (Extended)
Salt Content (conductivity)	Test range: 0.01% ~ 1.00%; Relative error: ±5% (Extended)
Soil Moisture	Moisture unit: % (g/100g); Moisture content test range: 0-100%; Error less than 0.5%
Test Speed	Test one soil sample (n, P, K) ≤ 30 minutes (including pretreatment time); Simultaneously measure 8 soil samples ≤ 1 hour (including pretreatment time)
Data Printing	Built in high-grade one button thermal printer
Power Supply	AC 220 ± 22V, 50/60H z (Built-in lithium battery of the instrument can be used)
Package Size(LWH) mm	*550250370+550410290*
Gross Weight (kg)	13.6
