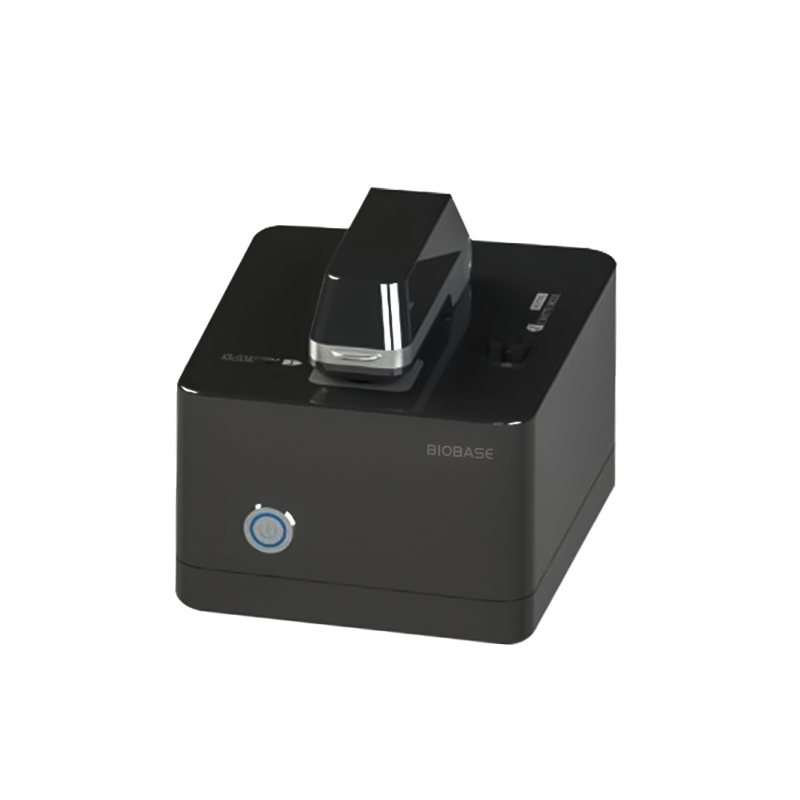

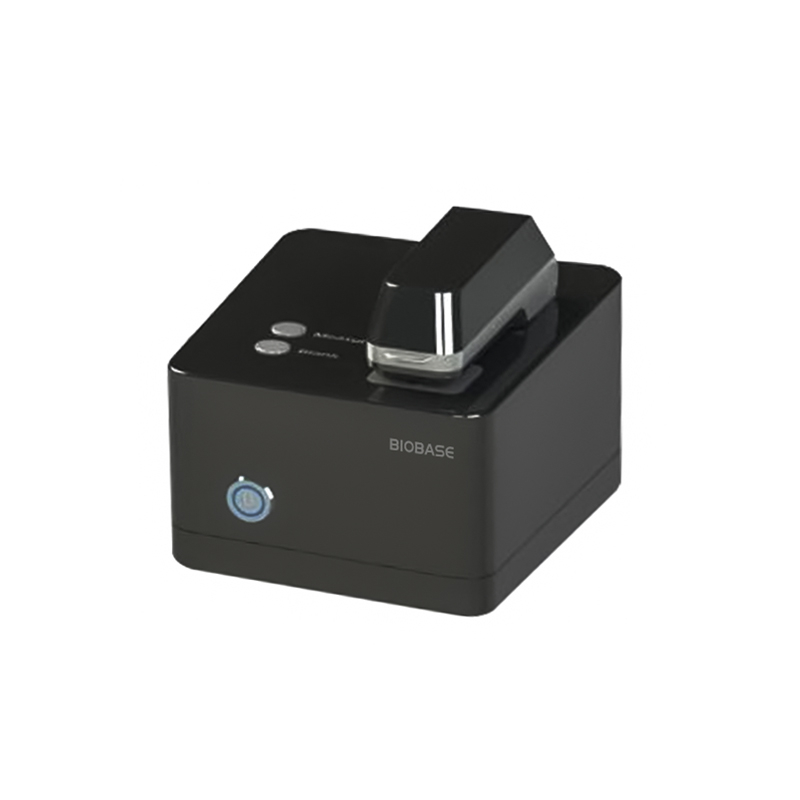

Micro-Volume UV/VIS Spectrophotometer

Name: Micro-Volume UV/VIS Spectrophotometer BK-CW1000 / BK-CW2000
Brand: BIOBASE
SKU: BK-CW1000

BK-CW1000 / BK-CW2000

Optical instrumentation for identification and quantification in research and quality control.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Controlled optical measurement
Configurations for different spectral ranges
R&D and quality-control applications

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-CW1000	BK-CW2000
Minimum Sample Capacity	Common to all models0.5μl
Ultromicro Optical Distance	1mm/0.2mm	1mm/0.2mm/0.05mm
Cuvette Optical Distance	/	10mm/5mm/2mm/1mm
Whole Wavelength	Common to all models190~1100nm
Scanning Wavelength	Common to all models190~850nm
Wavelength Accuracy	Common to all models1nm
Wavelength Resolution	Common to all models≤0.3nm(FWHM@Hg253.7nm)
Absorbance Accuracy	Common to all models2%(0.76@257nm)
Absorbance Resolution	Common to all models0.002Abs(1mm)
Absorbance Range	0.02~300(10mm)	0.005~300(10mm)
Test Accuracy	0.1~5 Abs.±0.1 Abs 5~80 Abs.±2%	0.01~0.5 Abs.±0.01Abs 0.5~80 Abs. ±2%
Test Time	Common to all models5s
Detector	Common to all models3648 pixel linear CCD array
Light Source	Common to all modelsXenon flash lamp
Sample Test Platform Material	Common to all models304 stainless steel and quartz
Standard Accessories	Common to all models• Driver software CD 1pc • Power line 1pc • Power Adapter 1pc
Consumption	Common to all models24W
Power Supply	Common to all modelsAC110/220V±10%, 50/60Hz
External Size(WDH)mm	Common to all models200130136
Package Size(WDH)mm	Common to all models310310310
Net Weight(kg)	Common to all models2.5
Gross Weight(kg)	Common to all models5
