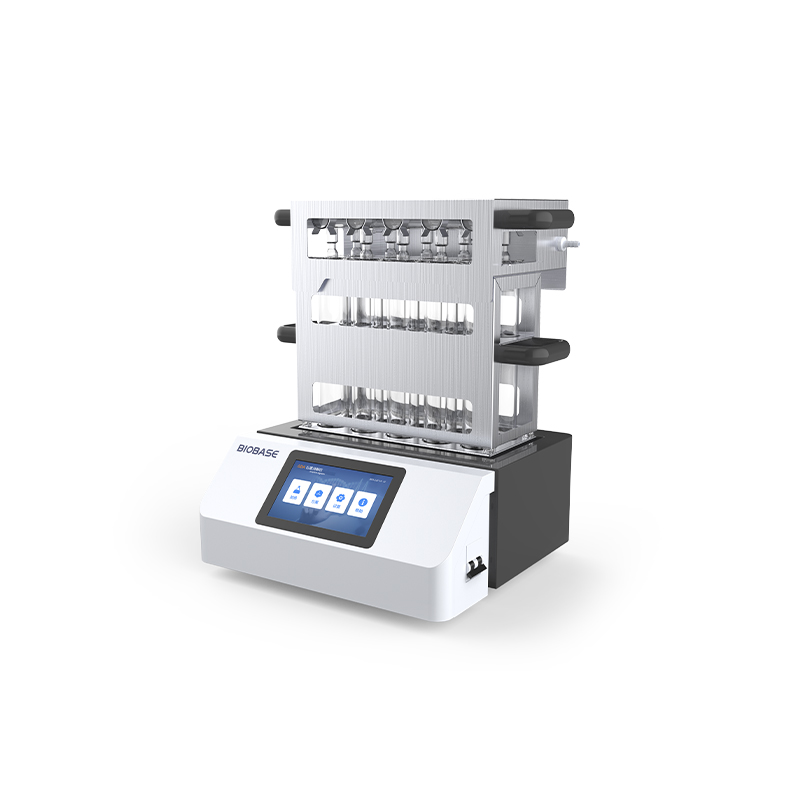

BIOBASE GDA-10A / GDA-20A Graphite Digester GDA-10A GDA-20A

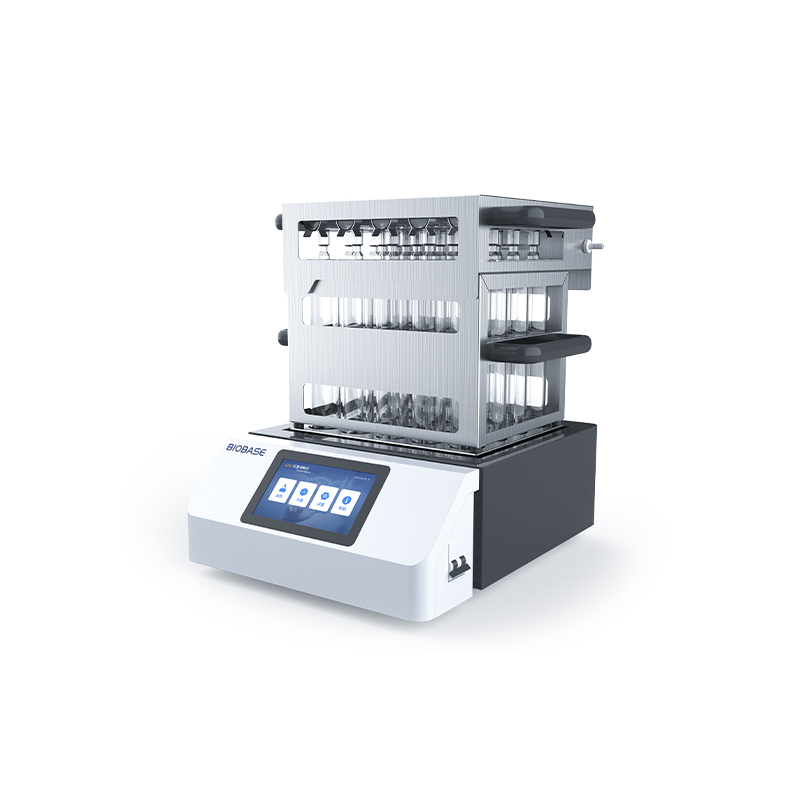

BIOBASE GDA-10A / GDA-20A Graphite Digester GDA-10A GDA-20A — 2

Photography and technical data supplied by: BIOBASE · 2 images.

Solid processing

Graphite Digester GDA-10A GDA-20A

GDA-10A / GDA-20A

Controlled milling, disintegration and digestion of solid samples for analysis and development.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Uniform solid processing
  • Controlled time, speed or temperature
  • Preparation for subsequent analysis

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterGDA-10AGDA-20A
Temp. Range
Common to all modelsRT+5℃~450℃
Temp.Accuracy
Common to all models±1℃
Capacity10pcs20pcs
Digestive TubeGlass tube 300ml*10Glass tube 300ml*20
Heating Mode
Common to all modelsInfrared radiation aluminum conduction
Insulation Mode
Common to all modelsCeramic fiber, split air duct insulation
Display
Common to all models7-inch high resolution color LCD screen
Consumption1.8KW3.4KW
Power Supply
Common to all modelsStandard: 220V±10%, 50/60Hz Optional: 110V±10%, 50/60Hz
External Size(W*D*H)360*390*177mm480*390*177mm
Package Size(W*D*H)670*570*650mm770*670*650mm
Net Weight21kg28kg
Gross Weight39kg47kg

Photography and technical data supplied by BIOBASE.
