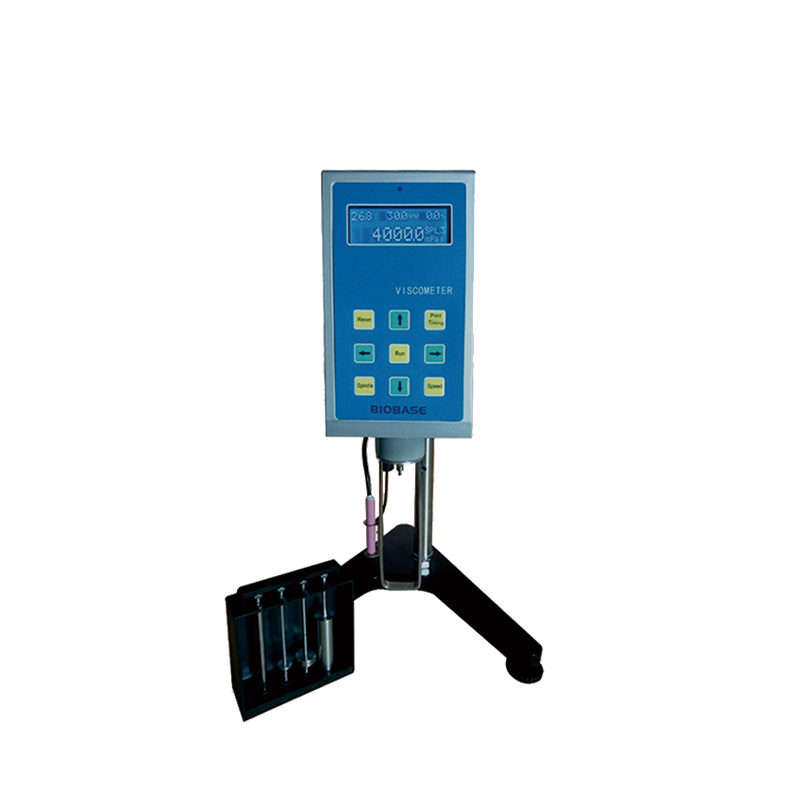

Digital Viscometer BDV Series

Name: Digital Viscometer BDV Series BDV-1A / BDV-1B / BDV-1C / BDV-2A / BDV-2B / BDV-2C
Brand: BIOBASE
SKU: BDV-1A

BDV-1A / BDV-1B / BDV-1C / BDV-2A / BDV-2B / BDV-2C

Instrumental measurement of physicochemical parameters for laboratory workflows.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Digital measurement
Method matched to the parameter
Repeatable results and data capture

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BDV-1A	BDV-1B	BDV-1C	BDV-2A	BDV-2B	BDV-2C
Series	BDV-1	BDV-1	BDV-1	BDV-2	BDV-2	BDV-2
Measured Range (mPas)	12 ~ 6M	80~ 40M	640~320M	6 ~ 6M	40~40M	320~320M
Rotation Speed(rpm)	0.1~99.9 non-polar shift	0.1~99.9 non-polar shift	0.1~99.9 non-polar shift	0.1~200 non-polar shift	0.1~200 non-polar shift	0.1~200 non-polar shift
Number of Spindle	4(L1 ~ L4)	6(R2~R7)	6(R2~R7)	4(L1~L4)	6(R2~R7)	6(R2~R7)
Measurement Accuracy	Common to all models±1%(FS)(Newtonian Fluid)
Repeatability	Common to all models±0.5%(FS)(Newtonian Fluid)
Power Supply	Common to all modelsAC100~240V, 50/60Hz
Standard Accessory	Common to all modelsRS232 standard output interface, RTD temperature probe
Optional Accessory	Common to all modelsSpecially used printer
L0 Spindle is for Option Measured Range (mPas)	0.6 ~ 6000	6~60000	50~500000	0.3~6000	3~60000	25~500000
R1 Spindle is for Option Measured Range (mPa.s)	/	20 ~ 100000	160 ~ 800000	/	10~100000	80 ~ 800000
Package Size(mm)	*400350360*	*400350550*	*400350550*	*400350360*	*400350550*	*400350550*
Gross Weight(kg)	9	10.5	10.5	9	10.5	10.5
