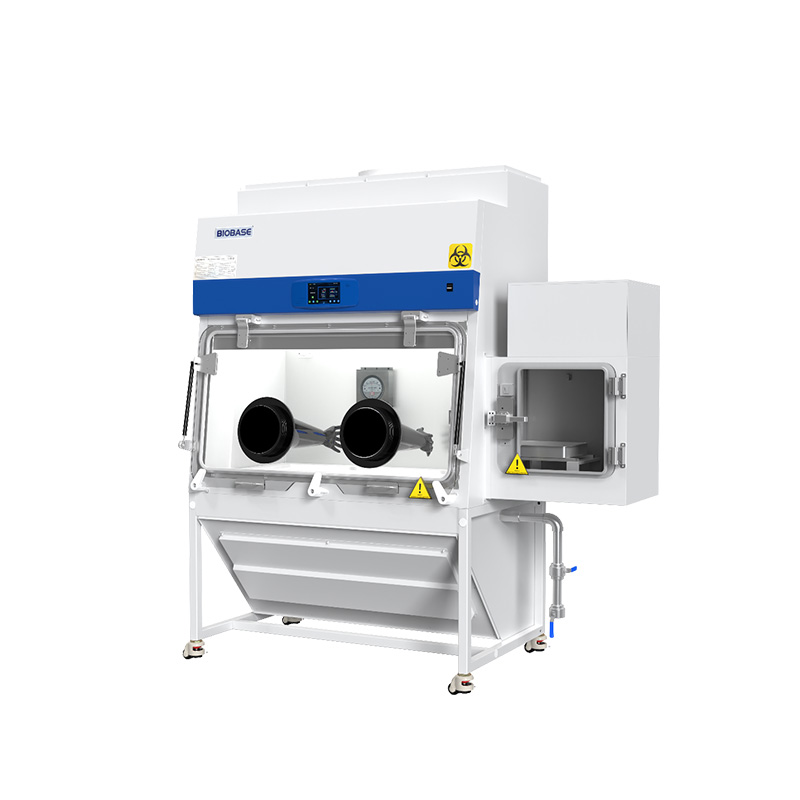

BIOBASE BSC-1100IIIX-H / BSC-1500IIIX-H Class III Biological Safety Cabinet BSC-1100IIIX-H BSC-1500IIIX-H

Photography and technical data supplied by: BIOBASE · 1 image.

Biological safety cabinets

Class III Biological Safety Cabinet BSC-1100IIIX-H BSC-1500IIIX-H

BSC-1100IIIX-H / BSC-1500IIIX-H

Containment and filtration for operator, sample and environmental protection.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Containment and HEPA filtration
  • Protection matched to the risk class
  • Configuration validated for the space

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBSC-1100IIIX-HBSC-1500IIIX-H
External Size1667*950*2180mm1920*950*2180mm
Internal Size917*640*600mm1170*640*600mm
Pass Box Size
Common to all models580*440*560mm
Gloves
Common to all modelsOne pair of 800mm butyl rubber gloves
Front Window
Common to all models12mm tempered glass, anti-ultraviolet radiation
Display
Common to all modelsTouch LCD display
Pre-filter
Common to all modelsPolyester fiber, washable
Pressure
Common to all modelsNegative, ≥120Pa
ULPA Filter
Common to all modelsOperating area supply air filter: 99.9995%(0.12μm in diameter) · Base cabinet exhaust filter: 99.9995%(0.12μm in diameter) · Top exhaust filter: 99.9995%(0.12μm in diameter) · Pass box supply air filter: 99.9995%(0.12μm in diameter)
Noise
Common to all models≤67dB
Alarm
Common to all modelsAudio and visual alarm, abnormal pressure
Work Zone Material
Common to all models304 stainless steel
lllumination
Common to all models≥1000lux
Consumption1200W1300W
LED Lamp12W*214W*2
UV Lamp20W*2, 8W*130W*2, 8W*1
UV Lamp (2)
Common to all modelsEmission of 253.7nm for most efficient decontamination
Power Supply
Common to all modelsStandard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz
Packing Size1810*1100*2350mm2060*1100*2350mm
Gross Weight420kg480kg

Photography and technical data supplied by BIOBASE.
