Carbon & Sulfur Analyzer

Name: Carbon & Sulfur Analyzer BK-CSA5 / BK-CSA6
Brand: BIOBASE
SKU: BK-CSA5

BK-CSA5 / BK-CSA6

Instrumental measurement of physicochemical parameters for laboratory workflows.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Digital measurement
Method matched to the parameter
Repeatable results and data capture

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BK-CSA5	BK-CSA6
Working Principle	Common to all modelsHigh-frequency inductive combustion and infrared absorption system
Sample Weight(Solid steel)	Common to all modelsStandard 0.5g
Accuracy	Common to all modelsC/S: 0.1ppm
Analysis Time	Common to all models25~60s adjustable(normally: 35s)
Working Cycle	Common to all models24 hours

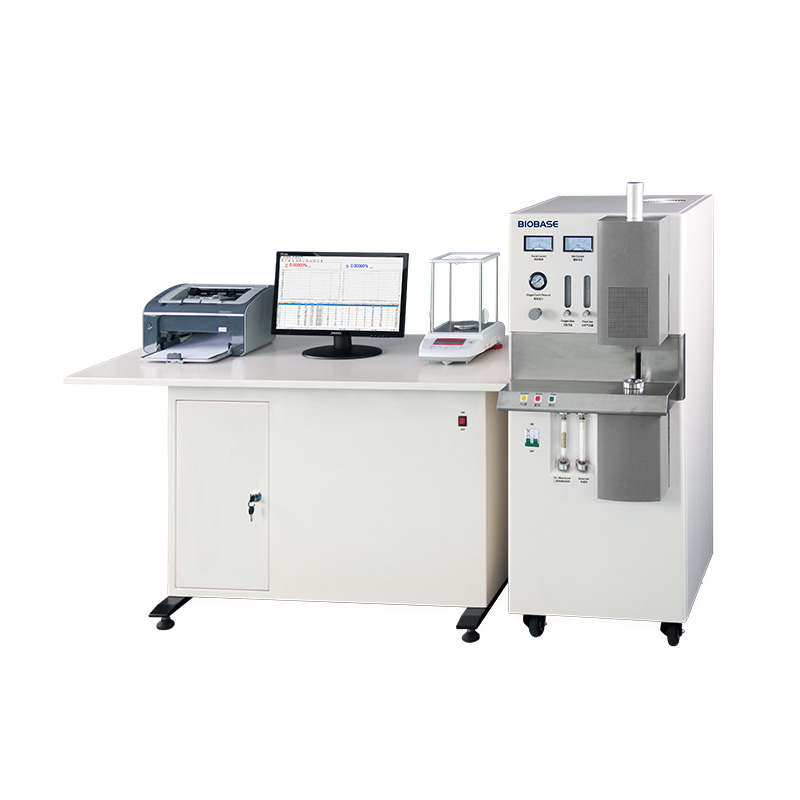

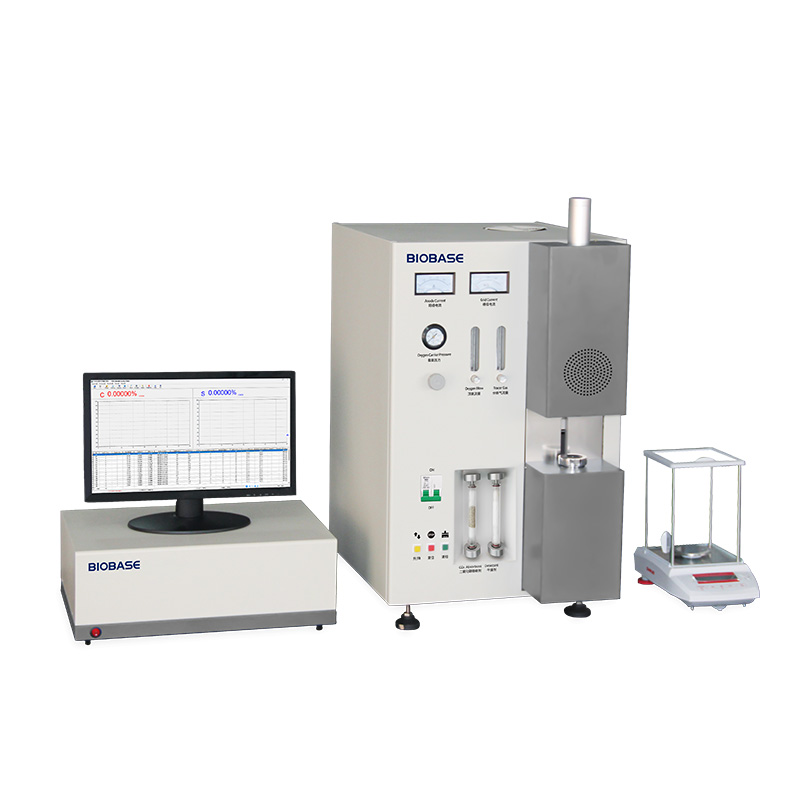

Appearance	Desktop detector, with desktop high-frequency furnace, save space	Separate work station, with vertical high-frequency furnace
Analysis Range	C: 0.0005%~6.0000% (can be extended to 99.999%) S: 0.0005%~0.5000% (can be extended to 99.999%)	C: 0.0001%~10.0000% (can be extended to 99.999%) S: 0.0001 %~3.50000% (can be extended to 99.999%)
Analysis Pool	2 pools	2 pools(optional 4 pools)
Consumption	2.2KW	2.5KW
Power Supply	Common to all modelsAC220V±10%, 50/60Hz
Package Size(WDH)	*1380760980mm*	*1670750960mm, 7505801430mm*
Gross Weight	193kg	150kg, 180kg
Standard Accessories	Common to all modelsMain unit, high frequency automatic inductive combustion furnace, electric balance
Standard Accessories (2)	Common to all models1000 times effective analysis of spare parts
