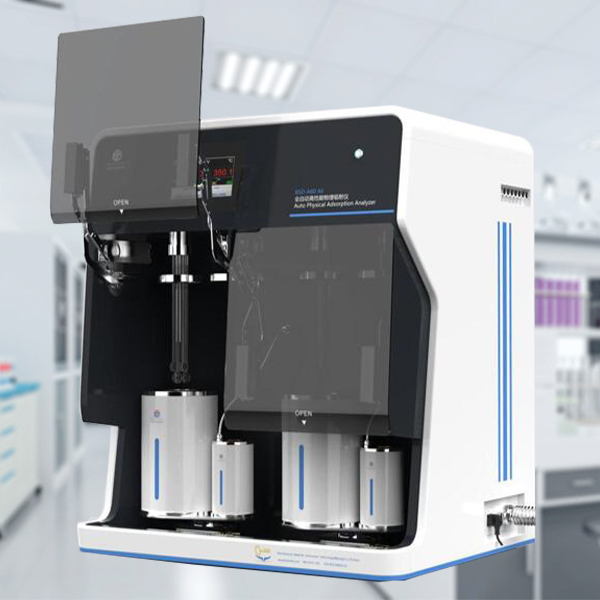

BET surface area and porosity analyzer

Name: BET surface area and porosity analyzer BSD-660 Series
Brand: BSD Instrument
SKU: BSD-660 Series

BSD-660 Series

Automated volumetric system for measuring specific surface area, pore volume and pore-size distribution in mesoporous, microporous and ultramicroporous materials.

Made to orderPrice on request

Manufacturer: BSD Instrument

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Automated BET analysis using the static volumetric method
Configurations for 2, 3, 6, 9 or 12 samples
Mesopore, micropore and ultramicropore characterisation

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BSD-660 Series
Method	Static volumetric gas adsorption
Analysis positions	2 / 3 / 6 / 9 / 12 samples, configuration dependent
Specific surface area	≥ 0.0005 m²/g
Pore diameter range	0.35–500 nm
Minimum measurable pore volume	≥ 0.0001 cm³/g
Repeatability / quantitative error	< 0.5% RSD using a standard BET reference material
Throughput	Up to 12 samples/hour in standard mode or 12 samples/15 min in fast mode, excluding degassing
Degassing temperature	Ambient to 400 °C; accuracy better than 0.1 °C
Vacuum	Down to 10⁻² Pa with an oil-sealed pump; down to 10⁻⁸ Pa with a molecular pump
Pressure transducers	0–1000 / 0–10 / 0–0.1 mmHg; 10⁻⁷ mmHg resolution
Minimum total surface area	0.1 m² with N₂; 0.01 m² with krypton
Gas-line temperature	40 °C; accuracy better than 0.1 °C
Dewar capacity	3 L
Programmable measurement points	1–5000
Compatible adsorptives	N₂, Ar, CO₂ and other non-corrosive gases; configuration to be confirmed

MADE-TO-ORDER SUPPLY

Do you need this equipment?

Share the application, configuration, quantity and delivery location. We prepare a tailored proposal with the required documentation.
