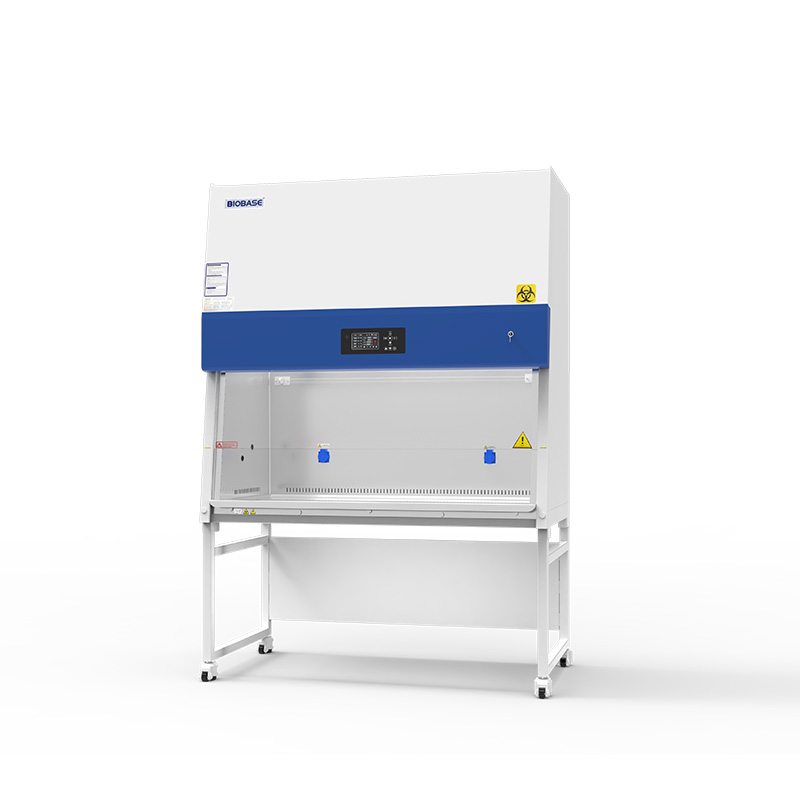

AC Series Class II A2 Biological Safety Cabinet

Name: AC Series Class II A2 Biological Safety Cabinet BSC-1100IIA2-X / BSC-1300IIA2-X / BSC-1500IIA2-X / BSC-1800IIA2-X / BSC-2000IIA2-X
Brand: BIOBASE
SKU: BSC-1100IIA2-X

BSC-1100IIA2-X / BSC-1300IIA2-X / BSC-1500IIA2-X / BSC-1800IIA2-X / BSC-2000IIA2-X

Containment and filtration for operator, sample and environmental protection.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Containment and HEPA filtration
Protection matched to the risk class
Configuration validated for the space

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BSC-1100IIA2-X	BSC-1300IIA2-X	BSC-1500IIA2-X	BSC-1800IIA2-X	BSC-2000IIA2-X
External Size(WDH)	*11007552200mm*	*13007552200mm*	*15007552200mm*	*18007552200mm*	*19507752200mm*
Internal Size(WDH)	*940600660mm*	*1150600660mm*	*1350600660mm*	*1625600660mm*	*1800600660mm*
Tested Opening	Common to all modelsSafety height 200mm(8")
Max Opening	Common to all models480mm
Inflow Velocity	Common to all models0.53±0.025m/s
Downflow Velocity	Common to all models0.33±0.025m/s
ULPA Filter	Common to all modelsTwo, 99.9995% efficiency at 0.12μm, filter life indicator
Front Window	Common to all modelsMotorized. Two-layer laminated toughened glass≥6mm. Anti UV
Noise	Common to all models≤65dB
UV Lamp	*30W1**	*30W1**	*40W1**	*40W1**	*40W1**
UV Lamp (2)	Common to all modelsUV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination
LED Lamp	*12W2**	*14W2**	*16W2**	*16W2**	*12W4**
Illumination	Common to all models≥1000Lux
Consumption	600W	800W	1300W	1300W	1700W
Waterproof Socket	Common to all modelsTwo, total load of two sockets: 500W
Display	Common to all modelsLCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc.
Control System	Common to all modelsMicroprocessor
Airflow System	Common to all models70% air recirculation, 30% air exhaust
Visual and Audio Alarm	Common to all modelsAbnormal airflow velocity, filter replacement, front window at unsafe height, high filter pressure alarm, abnormal power failure
Material	Common to all modelsWork Zone: 304 stainless steel
Material (2)	Common to all modelsMain Body: Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	770mm(Can be customized)	770mm(Can be customized)	770mm(Can be customized)	800mm(Can be customized)	800mm(Can be customized)
Caster	Common to all modelsFootmaster caster
Power Supply	Common to all modelsAC220V, 50/60Hz; 110V, 60Hz
Standard Accessory	Common to all modelsLED lamp 2pcs (except for BSC-2000IIA2-X 4pcs) , UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs
Optional Accessory	Common to all modelsWater and gas tap, Electric height adjustable base stand, Armrest
Gross Weight	270kg	310kg	335kg	395kg	420kg
Package Size(WDH)	*12309901840mm*	*14309901840mm*	*16309901840mm*	*19309901840mm*	*20809901840mm*
