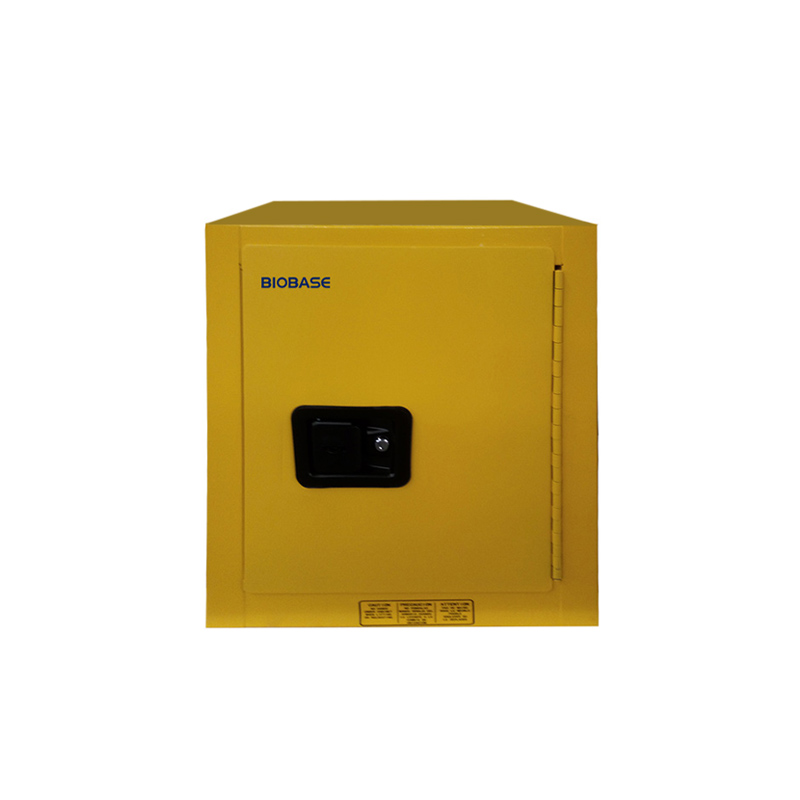

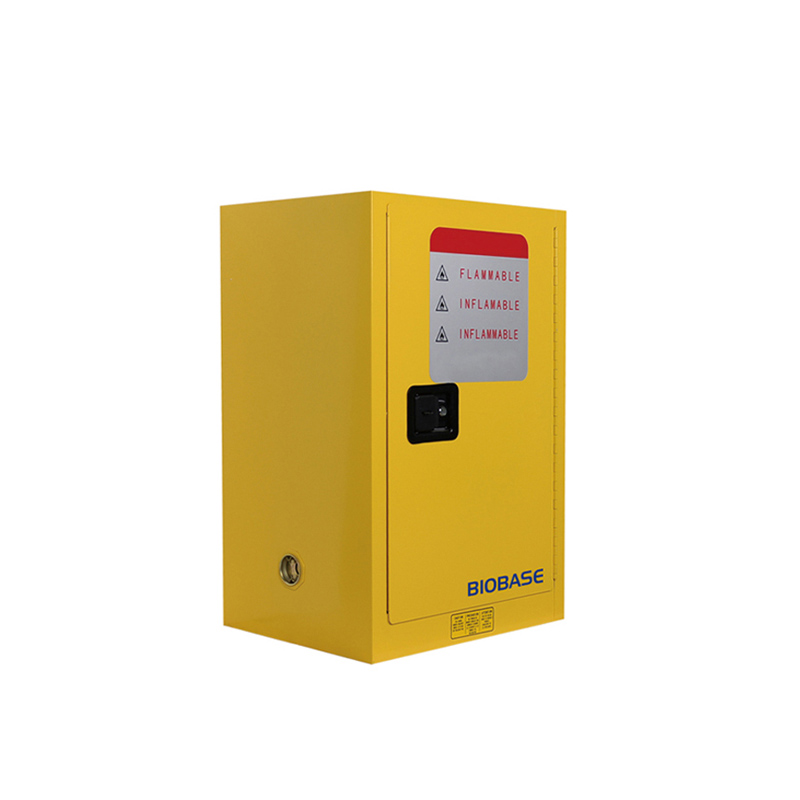

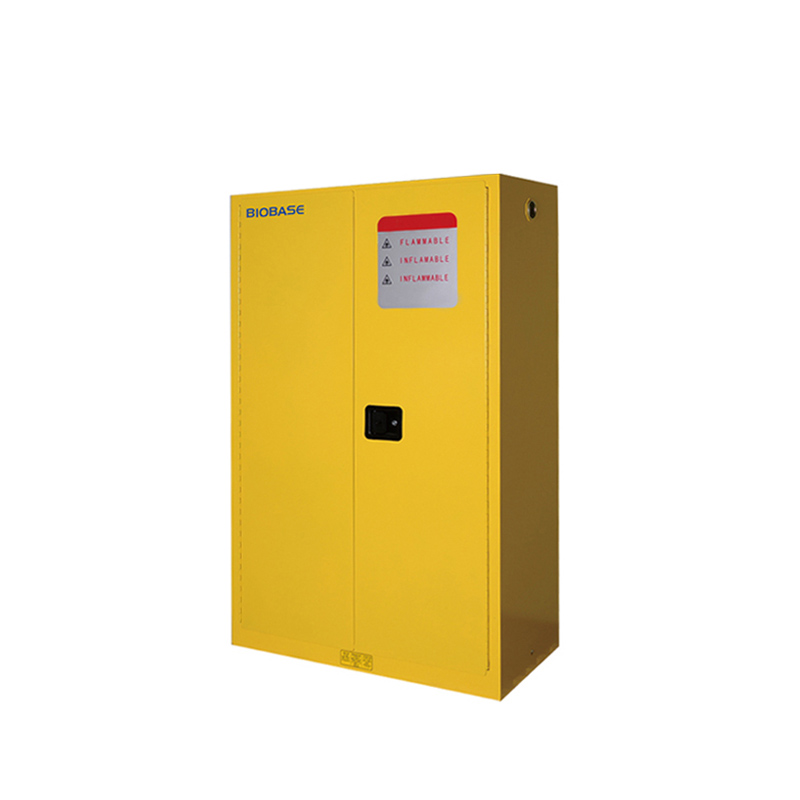

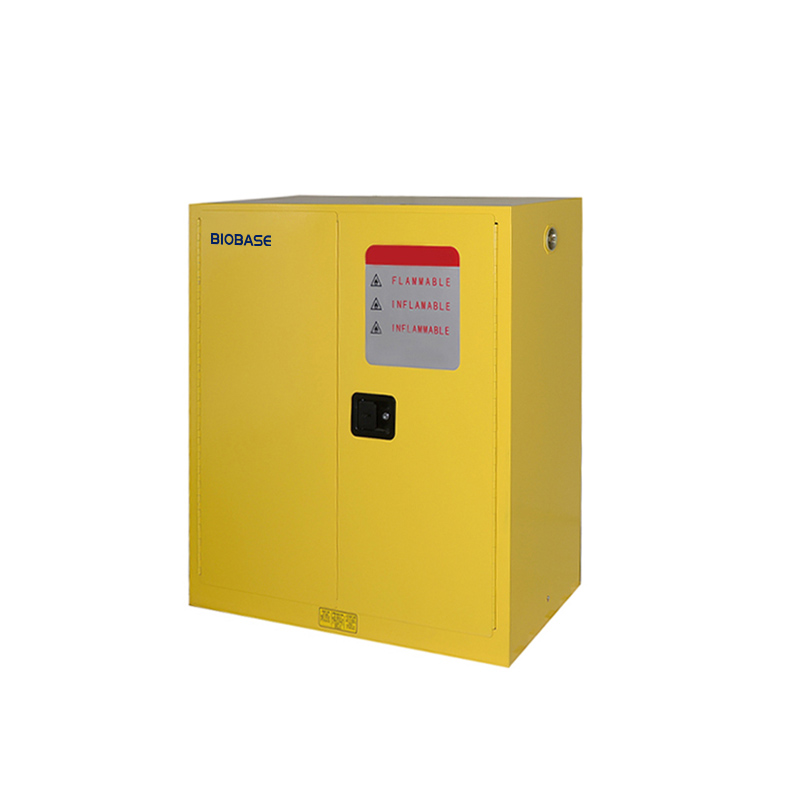

BIOBASE BKSC-4Y / BKSC-12Y / BKSC-22Y / BKSC-30Y / BKSC-45Y / BKSC-60Y / BKSC-90Y Flammable liquids safety storage cabinets
BIOBASE BKSC-4Y / BKSC-12Y / BKSC-22Y / BKSC-30Y / BKSC-45Y / BKSC-60Y / BKSC-90Y Flammable liquids safety storage cabinets — 2BIOBASE BKSC-4Y / BKSC-12Y / BKSC-22Y / BKSC-30Y / BKSC-45Y / BKSC-60Y / BKSC-90Y Flammable liquids safety storage cabinets — 3BIOBASE BKSC-4Y / BKSC-12Y / BKSC-22Y / BKSC-30Y / BKSC-45Y / BKSC-60Y / BKSC-90Y Flammable liquids safety storage cabinets — 4

Photography and technical data supplied by: BIOBASE · 4 images.

Laboratory furniture

Flammable liquids safety storage cabinets

BKSC-4Y / BKSC-12Y / BKSC-22Y / BKSC-30Y / BKSC-45Y / BKSC-60Y / BKSC-90Y

Yellow safety-cabinet series for flammable liquids with flash points below 45 °C, available in capacities from 15 to 340 L.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Double-wall fire-resistant steel with 38 mm insulation
  • 50 mm spill-retention sump and adjustable leak-resistant shelves
  • Three-point locking, fire-protected vents and grounding connection

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBKSC-4YBKSC-12YBKSC-22YBKSC-30YBKSC-45YBKSC-60YBKSC-90Y
Capacity4 gallon(15L)12 galton(45L)22 gallon(83L)30 gallon(114L)45 gallon(170L)60 gallon(227L)90 gallon(340L)
Material
Common to all modelsDouble-layer anti-fire cold-rolled steel
Adjustable Shelf1pc1pc3pcs1pc2pcs2pcs2pcs
DoorSingle/ManualSingle/ManualSingle/ManualDouble/ManualDouble/ManualDouble/ManualDouble/Manual
External Size(W*D*H)mm430*430*560590*460*890600*460*16501090*460*11201090*460*1650860*860*16501090*860*1650
Package Size(W*D*H)mm505*505*585665*535*915680*540*17901170*540*12601170*540*1790940*940*17901170*940*1790
Gross Weight28kg50kg93kg101kg138kg170kg200kg

Photography and technical data supplied by BIOBASE.
