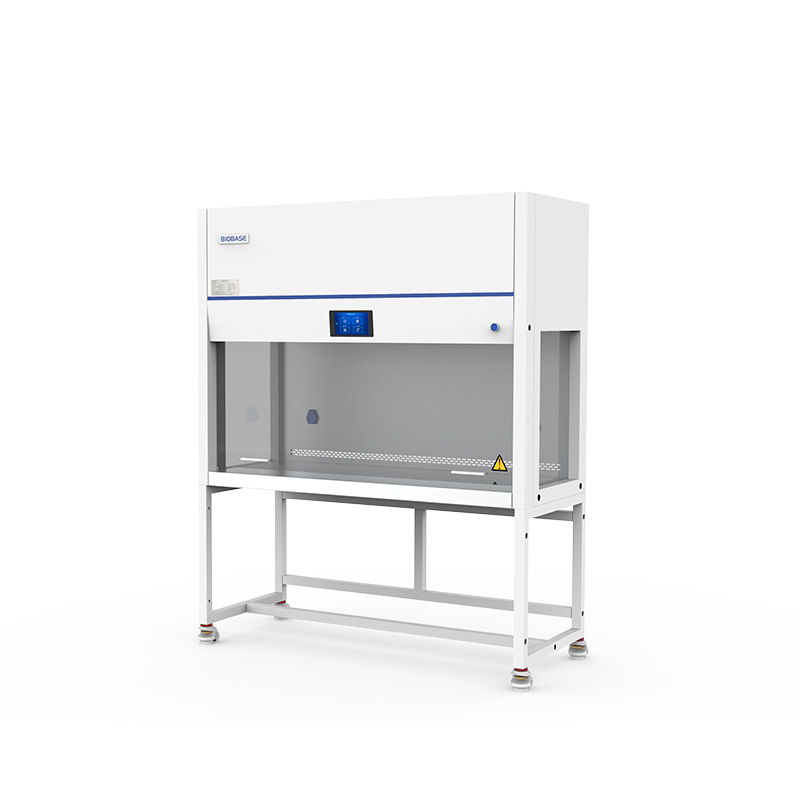

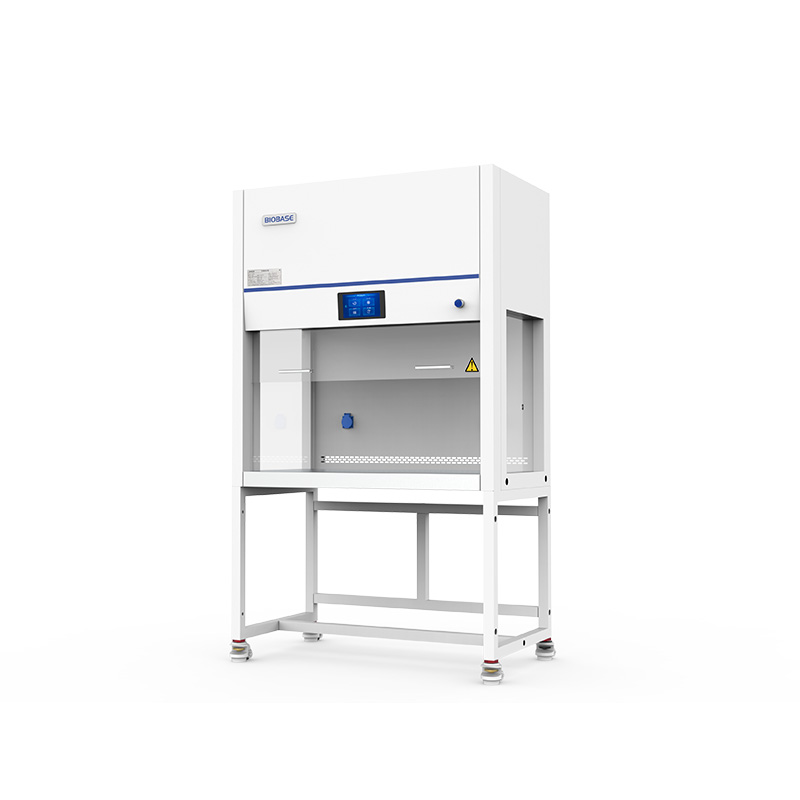

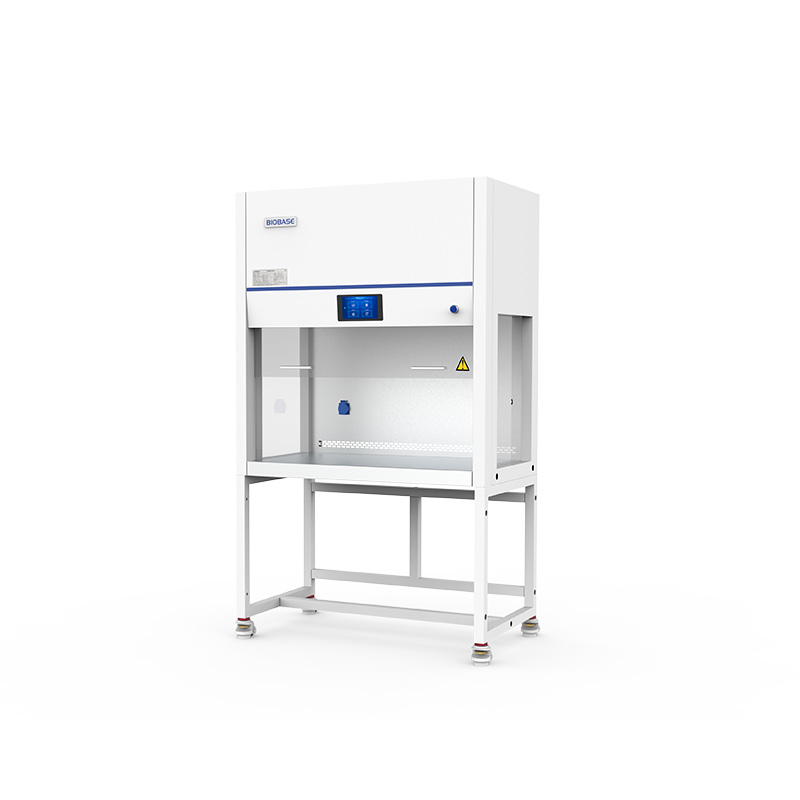

BIOBASE BKCB-V1100 / BKCB-V1300 / BKCB-V1500 Vertical laminar flow cabinet
BIOBASE BKCB-V1100 / BKCB-V1300 / BKCB-V1500 Vertical laminar flow cabinet — 2BIOBASE BKCB-V1100 / BKCB-V1300 / BKCB-V1500 Vertical laminar flow cabinet — 3

Photography and technical data supplied by: BIOBASE · 3 images.

Laminar flow cabinets

Vertical laminar flow cabinet

BKCB-V1100 / BKCB-V1300 / BKCB-V1500

Unidirectional HEPA-filtered airflow for sample protection and clean processes.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • HEPA-filtered laminar airflow
  • Sample protection
  • Vertical or horizontal configuration

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBKCB-V1100BKCB-V1300BKCB-V1500
Flow Mode
Common to all modelsVertical flow
Number of UsersSingle1~21~2
Rated Power700VA(including operating area socket load 500VA)700VA(including operating area socket load 500VA)850VA(including operating area socket load 500VA)
Power Supply
Common to all models220V±10%, 50Hz(Standard); 110V±10%, 60Hz(Optional)
Airflow Velocity
Common to all models0.2m/s~0.45m/s
Noise
Common to all models≤65dB(A)
Lighting
Common to all models≥300lx
Vibration
Common to all models≤5μm(rms)
Safety
Common to all modelsColonies Number≤0.5CFU/30min
Clean Grade
Common to all modelsISO level 5(100 levels)
Filtration Efficiency
Common to all modelsHEPA(H14) high efficiency filter, filtration efficiency for 0.3μm particle≥99.995%
Front Window Safety Height
Common to all models200mm
Max Opening
Common to all models350mm
Work Surface Height
Common to all models750mm(Customized)
Standard Accessory
Common to all modelsLED lamp*2, UV lamp*2, Base stand, Waterproof socket*2
Optional Accessory
Common to all modelsArmrest*2 , water tap, gas tap, electric height adjustable base stand
Net Weight190kg225kg235kg
Gross Weight248kg289kg308kg
External Size(W*D*H)1100*630*1860mm1300*630*1860mm1500*630*1860mm
Internal Size(W*D*H)1000*515*650mm1200*515*650mm1400*515*650mm
Package Size(W*D*H)1250*840*1420mm1450*840*1420mm1650*840*1420mm

Photography and technical data supplied by BIOBASE.
