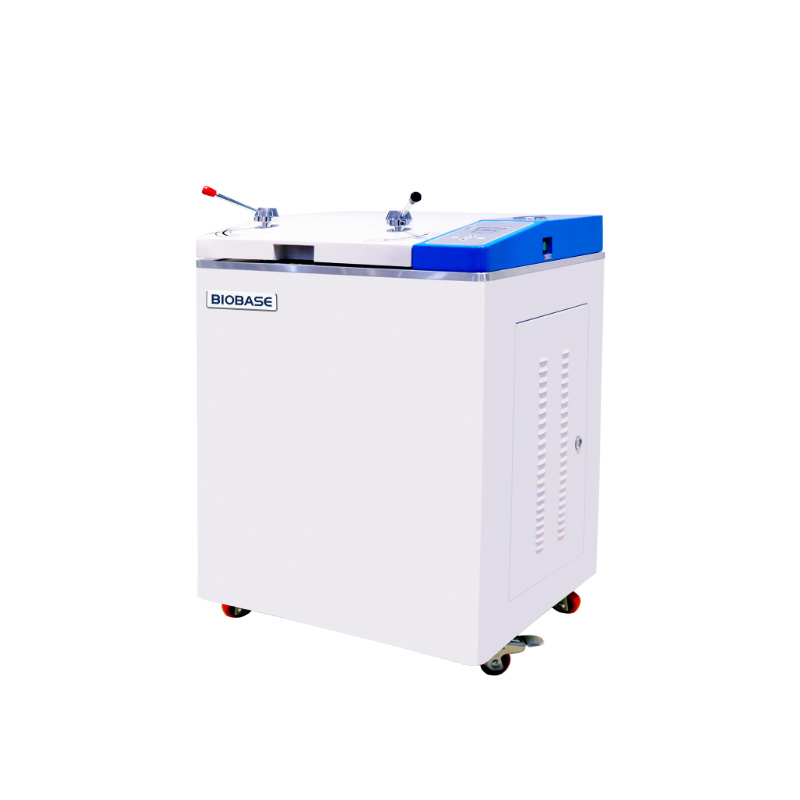

Vertical Sterilization Autoclave BKQ-Z30I

Name: Vertical Sterilization Autoclave BKQ-Z30I
Brand: BIOBASE
SKU: BKQ-Z30I

BKQ-Z30I / BKQ-Z50I / BKQ-Z75I / BKQ-Z100I

Equipment for sterilisation, disinfection and technical washing of materials, instruments, air and surfaces.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Thermal, UV, plasma or chemical processes
Capacities and formats for different loads
Integrated safety systems

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKQ-Z30I	BKQ-Z50I	BKQ-Z75I	BKQ-Z100I
Capacity	30L	50L	75L	100L
Designed Pressure	Common to all models0.28MPa
Working Pressure	Common to all models0.23MPa
Designed Temp.	Common to all models150℃
Working Temp.	Common to all models105～136℃
Temp. Precision	Common to all models0.1℃
Chamber Material	Common to all modelsS30408
Chamber Size	*φ385412mm**	*φ385515mm**	*φ385715mm**	*φ385875mm**
Basket/ Mesh Bottom Basket/ Bucket	*φ365265mm, 1pc**	*φ365360mm, 1pc**	*φ365265mm, 2pcs**	*φ365360mm, 2pcs**
Noise	Common to all models≤65dB
Altitude	Common to all models≤2700m
Standard Accessory	Common to all modelsBasket
Optional Accessories	Common to all modelsPrinter, mesh bottom basket, bucket
Consumption	Common to all models4KW
Power Supply	Common to all modelsAC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) ; Wiring method:Air switch
External Size(WDH)	*645610710mm*	*645610810mm*	*645610945mm*	*6456101150mm*
Net Weight	86kg	91kg	98kg	112kg
Packing Size(WDH)	*750745950mm*	*7507451100mm*	*7507451240mm*	*7507451450mm*
Gross Weight	102kg	105kg	116kg	124kg
