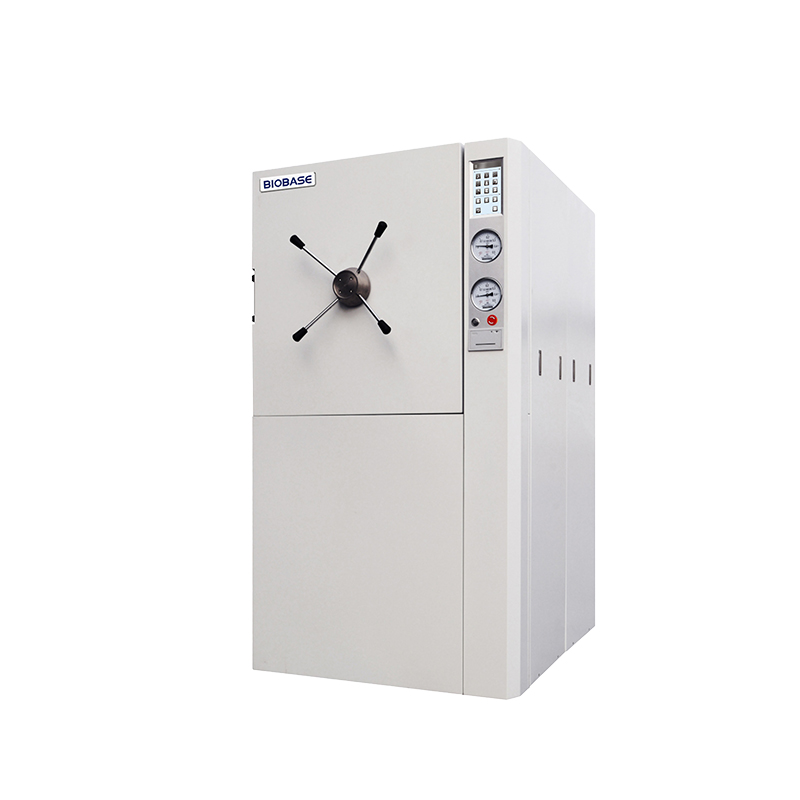

BIOBASE BKQ-Z150H / BKQ-Z200H / BKQ-Z300H / BKQ-Z360H Horizontal Pulse Vacuum Autoclave

Photography and technical data supplied by: BIOBASE · 1 image.

Sterilisation

Horizontal Pulse Vacuum Autoclave

BKQ-Z150H / BKQ-Z200H / BKQ-Z300H / BKQ-Z360H

Equipment for sterilisation, disinfection and technical washing of materials, instruments, air and surfaces.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Thermal, UV, plasma or chemical processes
  • Capacities and formats for different loads
  • Integrated safety systems

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBKQ-Z150HBKQ-Z200HBKQ-Z300HBKQ-Z360H
Capacity150L200L300L360L
Door
Common to all modelsManual
Display
Common to all models7-inch LCD touch screen
Designed Pressure
Common to all models-0.1/0.3MPa
Working Pressure
Common to all models0.23MPa
Working Temp.
Common to all models105~134℃
Temp. Precision
Common to all models0.1℃
Sterilization Time
Common to all models0~99min
Drying Time
Common to all models0~99min
Vacuum system
Common to all modelsWater circulating vacuum pump
Chamber Material
Common to all modelsS30408
Chamber Sizeφ500*780mmφ500*1020mmφ650*980mmφ650*1130mm
Altitude
Common to all models≤2000m; could be customized@2000~3000m
Rack
Common to all models1 mesh frame with 1 cover
Standard Accessories
Common to all modelsStainless steel frame with cover, mobile sensor, printer
Consumption
Common to all models20kVA
Power Supply
Common to all modelsAC380V, 50Hz(Standard); AC380V, 60Hz(Optional); AC220V, 50/60Hz(Three phase, Optional); Wiring Method: Air switch
External Size(W*D*H)940*1190*1780mm940*1400*1780mm1170*1570*1980mm1170*1570*1980mm
Net Weight400kg450kg590kg605kg
Package Size(W*D*H)1110*1385*2080mm1110*1585*2080mm1330*1755*2270mm1330*1755*2270mm
Gross Weight520kg600kg755kg770kg

Photography and technical data supplied by BIOBASE.
