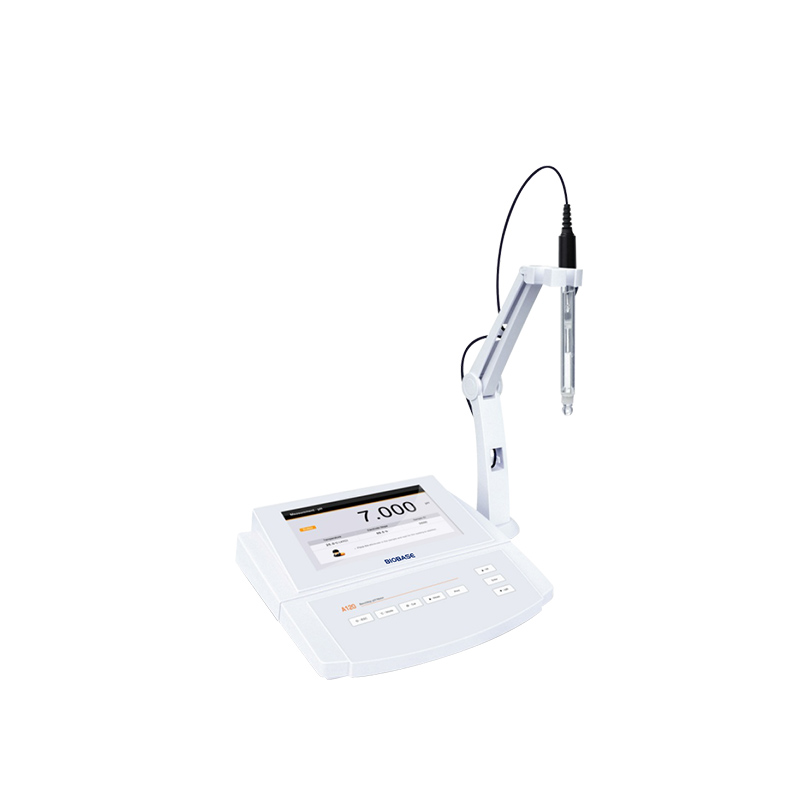

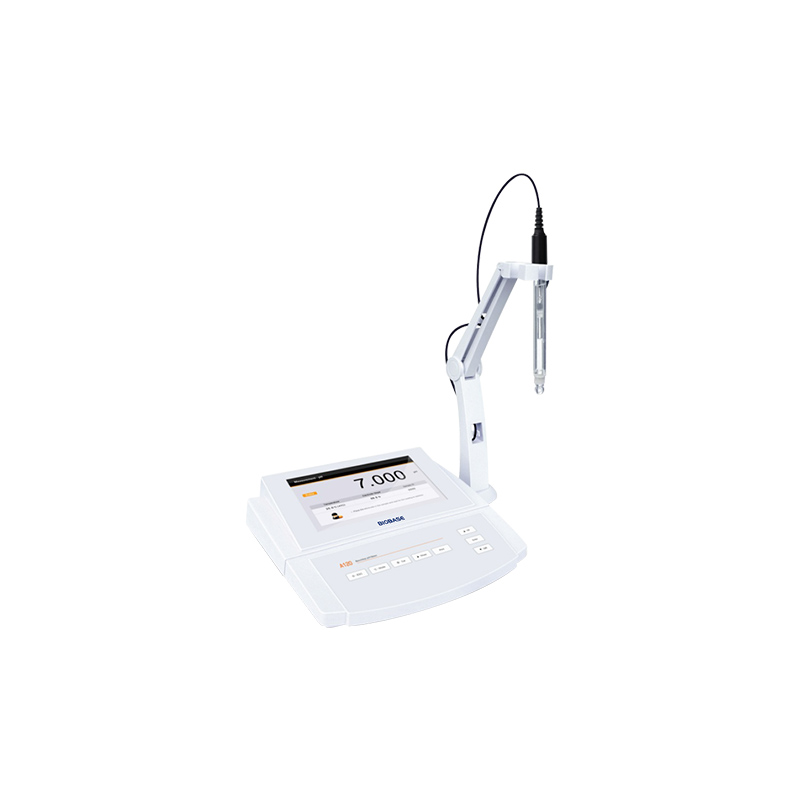

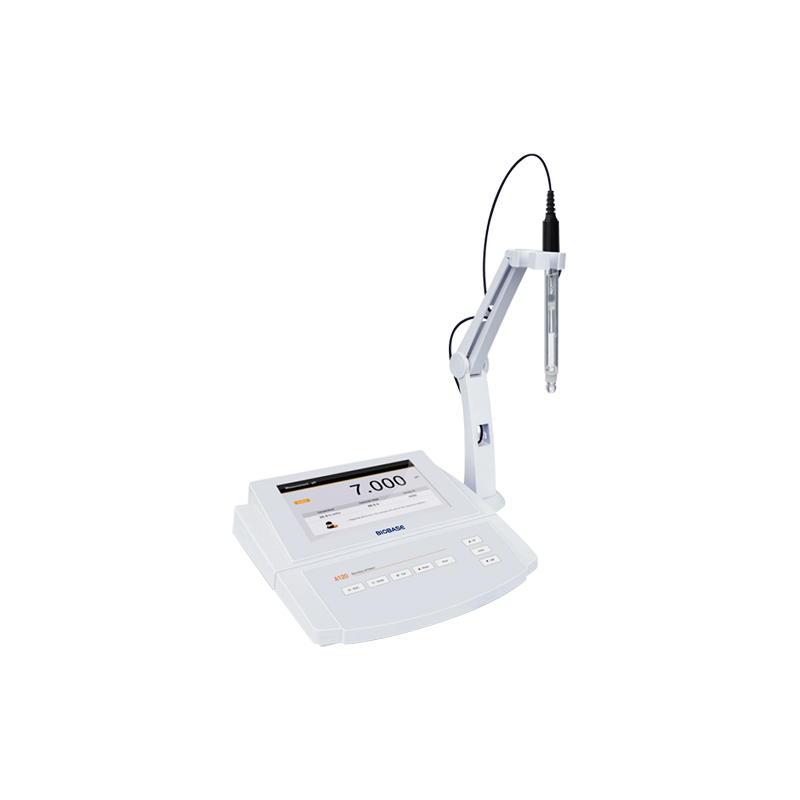

Benchtop pH/ORP/Ion Meter

Name: Benchtop pH/ORP/Ion Meter PH-A120-CN PH-A120-UK / PH-A130-CN PH-A130-UK / PH-A131
Brand: BIOBASE
SKU: PH-A120-CN PH-A120-UK

PH-A120-CN PH-A120-UK / PH-A130-CN PH-A130-UK / PH-A131

Instrumental measurement of physicochemical parameters for laboratory workflows.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Digital measurement
Method matched to the parameter
Repeatable results and data capture

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	PH-A120-CN PH-A120-UK	PH-A130-CN PH-A130-UK	PH-A131
PH	Common to all modelsRange · -2.000~20.000pH · • · • · —
PH (2)	Common to all modelsResolution · 0.001, 0.01, selectable · • · • · —
PH (3)	Common to all modelsAccuracy · ±0.002pH · • · • · —
PH (4)	Common to all modelsCalibration Points · 1 to 5 points · • · • · —
PH (5)	Common to all modelspH Buffer Options · USA, NIST, DIN, 5 custom buffers · • · • · —
ORP(optional)	Common to all modelsmV Range · ±2000.0mV · • · • · •
ORP(optional) (2)	Common to all modelsRelative mV Range · ±2000.0mV · • · • · —
ORP(optional) (3)	Common to all modelsResolution · 0.1mV · • · • · •
ORP(optional) (4)	Common to all modelsAccuracy · ±0.2mV · • · • · •
ORP(optional) (5)	Common to all modelsCalibration Points · 1 point · • · • · —
Ion	Common to all modelsRange · 0.001~30000 (depending on the range of ISE) · — · • · •
Ion (2)	Common to all modelsResolution · 0.001, 0.01, 0.1, 1 · — · • · •
Ion (3)	Common to all modelsAccuracy · ±0.5% F.S. (monovalent), ±1% F.S. (divalent) · — · • · •
Ion (4)	Common to all modelsMeasurement Units · ppm, mg/L, mol/L, mmol/L · — · • · •
Ion (5)	Common to all modelsCalibration Points · 2 to 5 points (0.001, 0.01, 0.1, 1, 10, 100, 1000, 10000) · — · • · •
Ion (6)	Common to all modelsMeasurement Methods · Direct reading, known addition, known subtraction, sample addition, sample subtraction · — · • · •
Ion (7)	Common to all modelsElectrode Management · 1 to 3 electrodes · — · • · •
Water Hardness	Common to all modelsRange · 0.05~200mmol/L, 0~1122°dH, 0~1404°e, 0~2000°fH, 0~8000mg/L (Ca2+) · — · • · •
Water Hardness (2)	Common to all modelsResolution · 0.001, 0.01, 0.1, 1 · — · • · •
Water Hardness (3)	Common to all modelsAccuracy · ±1% F.S. · — · • · •
Water Hardness (4)	Common to all modelsCalibration Points · 2 to 5 points (0.01, 0.1, 1, 10, 100mmol/L) · — · • · •
Temperature	Common to all modelsRange · 0~105°C/32~221°F · • · • · •
Temperature (2)	Common to all modelsResolution · 0.1°C/0.1°F · • · • · •
Temperature (3)	Common to all modelsAccuracy · ±0.5°C/±0.9°F · • · • · •
Temperature (4)	Common to all modelsOffset Calibration · 1 point, reading ±10°C · • · • · •
Other Specifications	Common to all modelsTemperature Compensation · 0~100°C, manual or automatic · • · • · •
Other Specifications (2)	Common to all modelsSolution Temperature Coefficient · 25°C · • · • · —
Other Specifications (3)	Common to all modelsStability Criteria · Standard or high-accuracy · • · • · •
Other Specifications (4)	Common to all modelsCalibration Due Alarm · 1 to 31 days or off · • · • · •
Other Specifications (5)	Common to all modelsInterval Readings · 10, 30, 60 seconds, 10, 30 minutes or off · • · • · •
Other Specifications (6)	Common to all modelsPassword Protection · 4 digits · • · • · •
Other Specifications (7)	Common to all modelsMemory · 1000 data sets · • · • · •
Other Specifications (8)	Common to all modelsCommunication Interface · USB · • · • · •
Other Specifications (9)	Common to all modelsConnector · BNC, 3.5 mm jack socket · • · • · •
Other Specifications (10)	Common to all modelsDisplay · 7 inches TFT LCD · • · • · •
Other Specifications (11)	Common to all modelsPower Supply · Standard: 220V 50/60Hz; Optional: 110V, 50/60Hz; DC12V power adapter · • · • · •
Other Specifications (12)	Common to all modelsOuter Dimensions · 24022080mm · 24022080mm · 24022080mm
Other Specifications (13)	Common to all modelsNet Weight · 1.7kg · 1.7kg · 1.7kg
Other Specifications (14)	Common to all modelsPacking Size · 320250200mm · 320250200mm · 320250200mm
Other Specifications (15)	Common to all modelsGross Weight · 1.8kg · 1.8kg · 1.8kg
