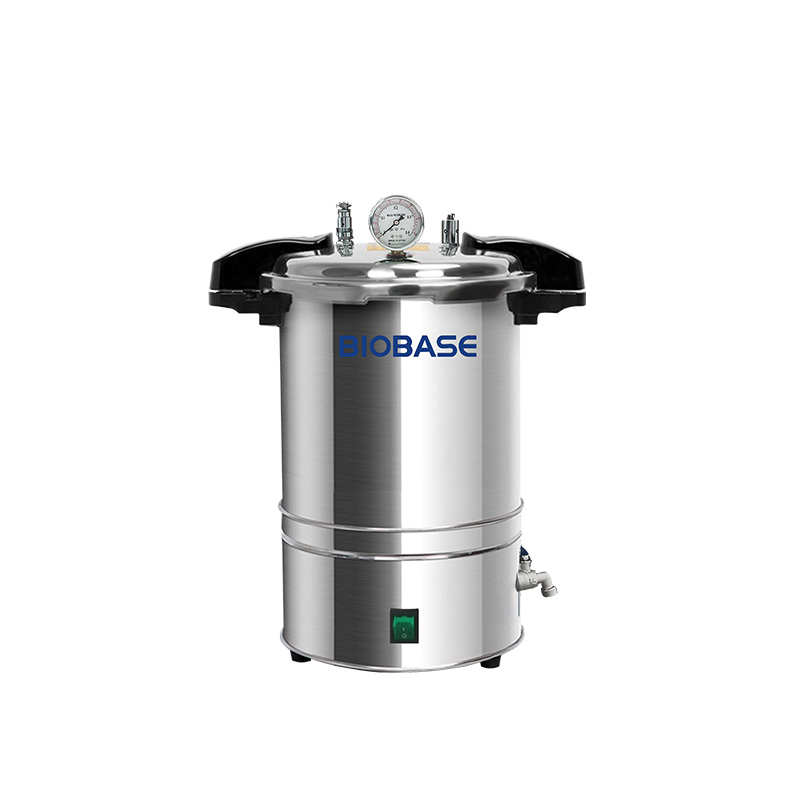

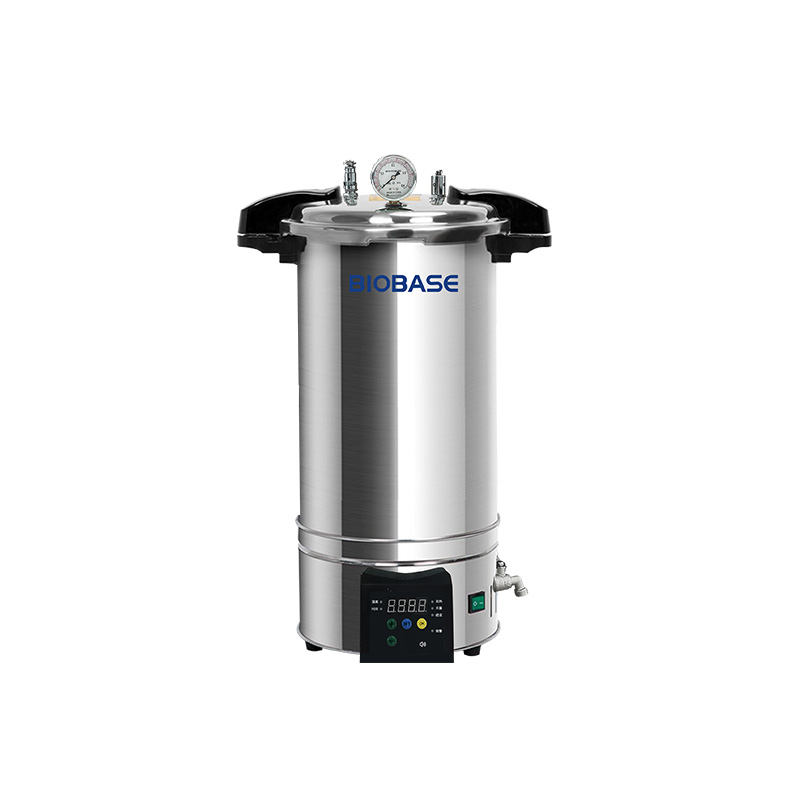

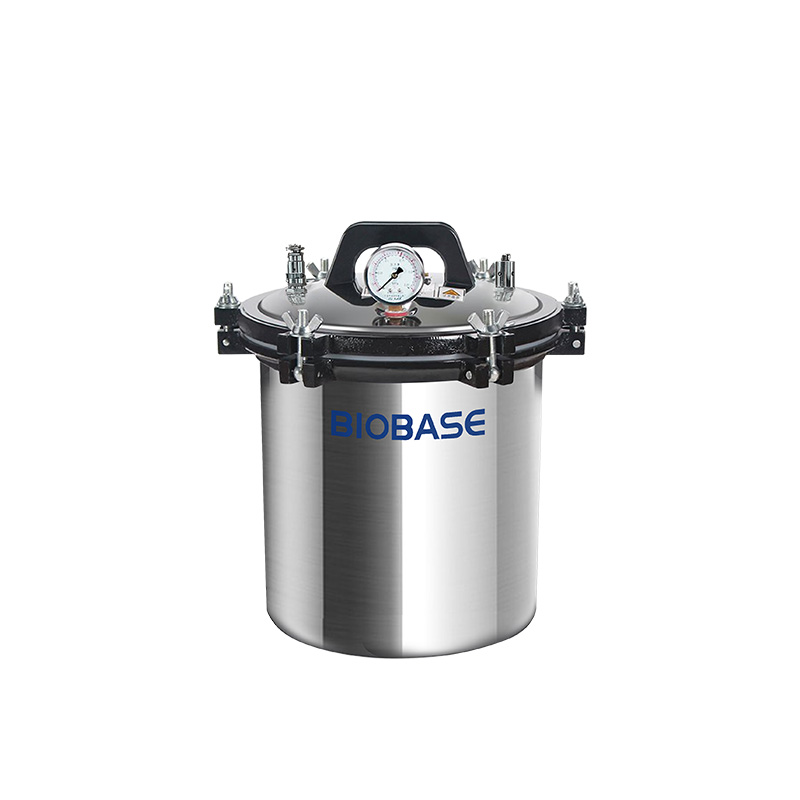

Portable Autoclave

Name: Portable Autoclave BKM-P18I / BKM-P18II / BKM-P18III / BKM-24I / BKM-P24II / BKM-P24III
Brand: BIOBASE
SKU: BKM-P18I

BKM-P18I / BKM-P18II / BKM-P18III / BKM-24I / BKM-P24II / BKM-P24III

Equipment for sterilisation, disinfection and technical washing of materials, instruments, air and surfaces.

Made to orderPrice on request

Manufacturer: BIOBASE

Request a quote

Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

Thermal, UV, plasma or chemical processes
Capacities and formats for different loads
Integrated safety systems

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

Parameter	BKM-P18I	BKM-P18II	BKM-P18III	BKM-24I	BKM-P24II	BKM-P24III
Type Capacity	Common to all modelsDual-use Type: 18L · Anti-dry Type: 18L · Timing Control Type: 18L · Dual-use Type: 24L · Anti-dry Type: 24L · Timing Control Type: 24L
Type Max Working Pressure	Common to all modelsDual-use Type: 0.165MPa · Anti-dry Type: 0.165MPa · Timing Control Type: 0.165MPa · Dual-use Type: 0.165MPa · Anti-dry Type: 0.165MPa · Timing Control Type: 0.165MPa
Type Max Working Temp.	Common to all modelsDual-use Type: 129℃ · Anti-dry Type: 129℃ · Timing Control Type: 129℃ · Dual-use Type: 129℃ · Anti-dry Type: 129℃ · Timing Control Type: 129℃
Type Rated Working Pressure	Common to all modelsDual-use Type: 0.14MPa · Anti-dry Type: 0.14MPa · Timing Control Type: 0.14MPa · Dual-use Type: 0.14MPa · Anti-dry Type: 0.14MPa · Timing Control Type: 0.14MPa
Type Rated Working Temp.	Common to all modelsDual-use Type: 126℃ · Anti-dry Type: 126℃ · Timing Control Type: 126℃ · Dual-use Type: 126℃ · Anti-dry Type: 126℃ · Timing Control Type: 126℃
Type Temp. Setting	Common to all modelsDual-use Type: Fixed 126℃ · Anti-dry Type: Fixed 126℃ · Timing Control Type: 105~127℃ · Dual-use Type: Fixed 126℃ · Anti-dry Type: Fixed 126℃ · Timing Control Type: 105~127℃
Type Heating Method	Common to all modelsDual-use Type: Coal or electricity · Anti-dry Type: Electricity · Timing Control Type: Electricity · Dual-use Type: Coal or electricity · Anti-dry Type: Electricity · Timing Control Type: Electricity
Type Sterilizing Time	Common to all modelsDual-use Type: Manual timing · Anti-dry Type: Manual timing · Timing Control Type: 0~99min · Dual-use Type: Manual timing · Anti-dry Type: Manual timing · Timing Control Type: 0~99min
Type Chamber Size	Common to all modelsDual-use Type: Ф300320mm · Anti-dry Type: Ф280350mm · Timing Control Type: Ф280350mm · Dual-use Type: Ф300450mm · Anti-dry Type: Ф280460mm · Timing Control Type: Ф280460mm
Type Altitude	Common to all modelsDual-use Type: ＜2600m · Anti-dry Type: ＜2600m · Timing Control Type: ＜2600m · Dual-use Type: ＜2600m · Anti-dry Type: ＜2600m · Timing Control Type: ＜2600m
Type Disinfection Tank	Common to all modelsDual-use Type: Φ280240mm · Anti-dry Type: Φ265265mm · Timing Control Type: Φ265265mm · Dual-use Type: Φ280350mm · Anti-dry Type: Φ265345mm · Timing Control Type: Φ265345mm
Type Automatic Control	Common to all modelsDual-use Type: No · Anti-dry Type: No · Timing Control Type: Yes · Dual-use Type: No · Anti-dry Type: No · Timing Control Type: Yes
Type Low Water Level Power Off Mode	Common to all modelsDual-use Type: Anti-dry burning heating pipe · Anti-dry Type: Water level switch · Timing Control Type: Water level switch · Dual-use Type: Anti-dry burning heating pipe · Anti-dry Type: Water level switch · Timing Control Type: Water level switch
Type Consumption	Common to all modelsDual-use Type: 2KW, 1.5KW can be customized · Anti-dry Type: 2KW, 1.5KW can be customized · Timing Control Type: 2KW, 1.5KW can be customized · Dual-use Type: 2KW, 1.5KW can be customized · Anti-dry Type: 2KW, 1.5KW can be customized · Timing Control Type: 2KW, 1.5KW can be customized
Type Power Supply	Common to all modelsDual-use Type: AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) · Anti-dry Type: AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) · Timing Control Type: AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) · Dual-use Type: AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) · Anti-dry Type: AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) · Timing Control Type: AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional)
Type External Size(WDH)	Common to all modelsDual-use Type: 385385450mm · Anti-dry Type: 450340600mm · Timing Control Type: 450340600mm · Dual-use Type: 385385560mm · Anti-dry Type: 448340680mm · Timing Control Type: 448340680mm
Type Net Weight	Common to all modelsDual-use Type: 15.5kg · Anti-dry Type: 13.5kg · Timing Control Type: 13.5kg · Dual-use Type: 16.5kg · Anti-dry Type: 14.5kg · Timing Control Type: 14.5kg
Type Package Size(WDH)	Common to all modelsDual-use Type: 400400430mm · Anti-dry Type: 400400670mm · Timing Control Type: 400400670mm · Dual-use Type: 400400530mm · Anti-dry Type: 400400770mm · Timing Control Type: 400400770mm
Type Gross Weight	Common to all modelsDual-use Type: 16.5kg · Anti-dry Type: 14.5kg · Timing Control Type: 14.5kg · Dual-use Type: 17.5kg · Anti-dry Type: 15.5kg · Timing Control Type: 15.5kg
