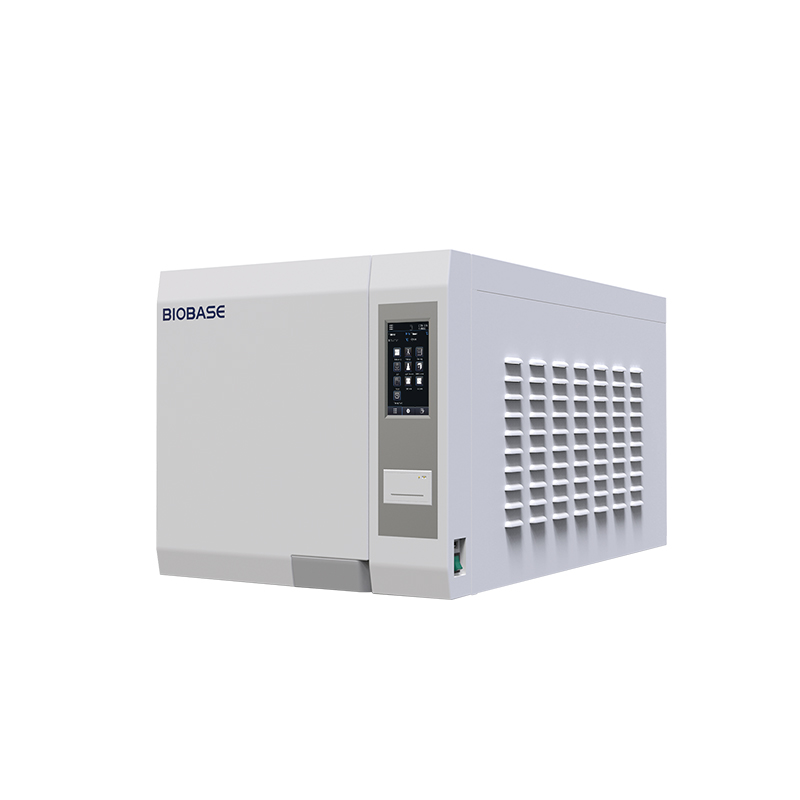

BIOBASE BKM-K18B / BKM-Z18B / BKM-K23B / BKM-Z23B Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B

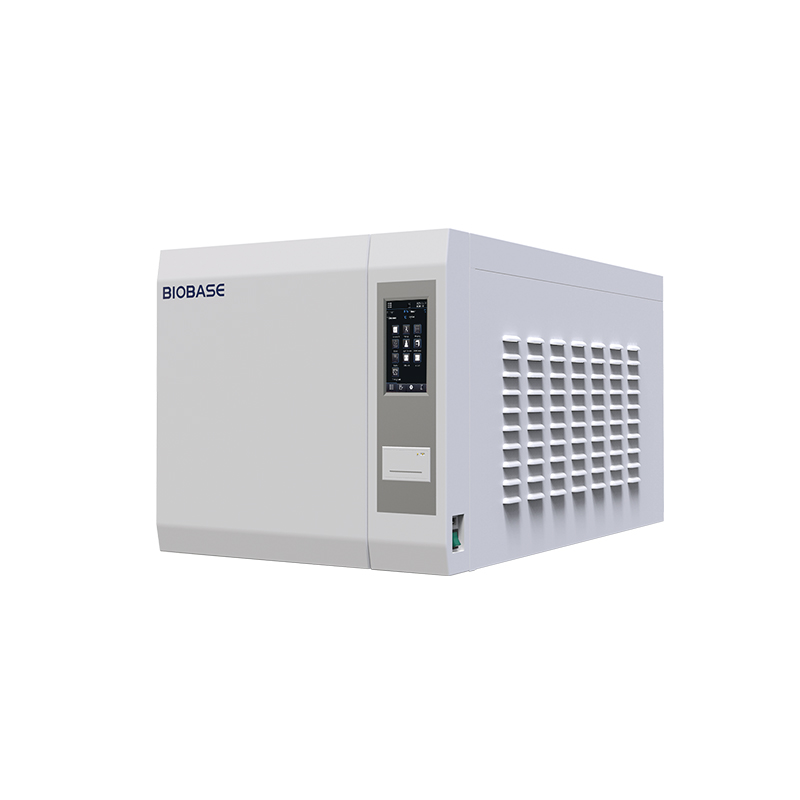

BIOBASE BKM-K18B / BKM-Z18B / BKM-K23B / BKM-Z23B Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B — 2

Photography and technical data supplied by: BIOBASE · 2 images.

Sterilisation

Table Top Class B Autoclave BKM-K18B BKM-Z18B BKM-K23B BKM-Z23B

BKM-K18B / BKM-Z18B / BKM-K23B / BKM-Z23B

Equipment for sterilisation, disinfection and technical washing of materials, instruments, air and surfaces.

Made to orderPrice on request
Manufacturer
BIOBASE
Request a quote
Reply within 24 hoursValidated selection and configurationDelivery across mainland Portugal, Madeira, the Azores, and all European countries.

01 / Key features

Key features

  • Thermal, UV, plasma or chemical processes
  • Capacities and formats for different loads
  • Integrated safety systems

02 / LaboratoriX technical datasheet

LaboratoriX technical datasheet

Technical parameters consolidated from the manufacturer documentation. Each column corresponds to one model; shared values are clearly identified. Final configuration, accessories, power supply and applicable documentation are confirmed with the quotation.

ParameterBKM-K18BBKM-Z18BBKM-K23BBKM-Z23B
Capacity18L18L23L23L
DoorManualAutomaticManualAutomatic
Display
Common to all models5-inch LCD touch screen
Designed Pressure
Common to all models-0.1/0.3MPa
Working Pressure
Common to all models0.23Mpa
Max Designed Temp.
Common to all models150℃
Working Temp.
Common to all models105~134℃
Temp. Precision
Common to all models0.1℃
Sterilization Time
Common to all models0~99min
Drying Time
Common to all models0~99min
Water Tank Capacity
Common to all models3.5L
Vacuum System
Common to all modelsHigh efficiency vacuum pump
Chamber Material
Common to all modelsS30408
Chamber Sizeφ250*350mmφ250*350mmφ250*450mmφ250*450mm
Altitude
Common to all models≤2500m
Rack
Common to all models1 rack with 3 trays
Standard Accessories
Common to all modelsAluminum tray, USB, printer
Optional Accessories
Common to all modelsStainless steel tray
Consumption
Common to all models3KW
Power Supply
Common to all modelsAC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, air switch)
External Size(W*D*H)630*485*450mm630*485*450mm680*485*450mm680*485*450mm
Net Weight48kg48kg53kg53kg
Package Size(W*D*H)
Common to all models810*610*590mm
Gross Weight64kg64kg65kg65kg

Photography and technical data supplied by BIOBASE.
